300-982 | RSL 4500 digital LED Slit Lamp Zeiss Style

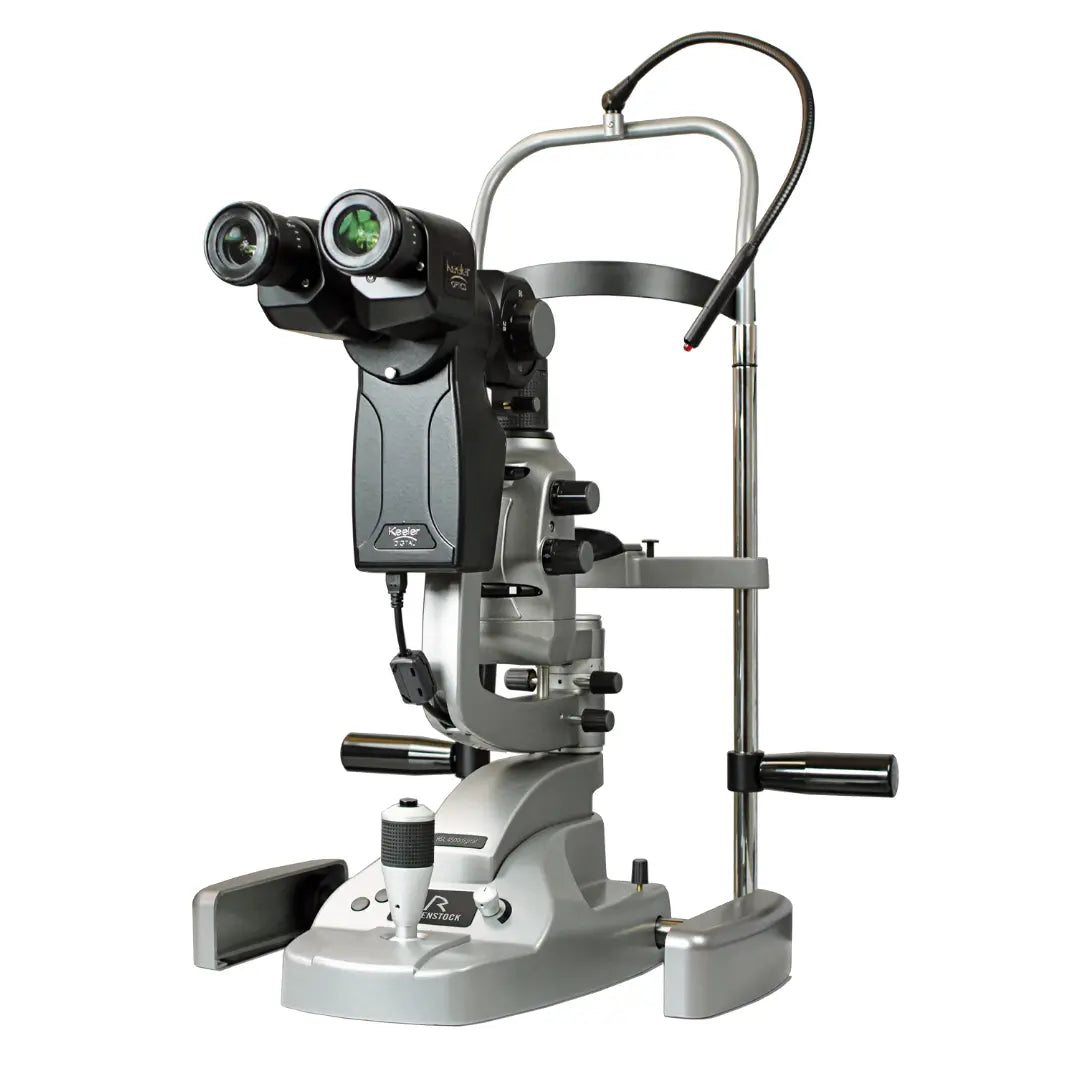

RSL 4500 digital LED Slit Lamp

Click here to download Brochure

Elegant Rodenstock design layout
3- or 5-step magnification changer
Exceptional optics
Extensive filter and accessory set
Integrated yellow filter
LED illumination
R-Type Tonometer available

Combining classic beauty with modern technology – our RSL 4300, RSL 4500 and RSL 5000 are the results of ideal
style and substance. Enjoy the difference in easy handling with perfectly placed on-board lighting control –
Surely, high quality, accuracy and reliability are guaranteed. Day by day, you can rely on a perfect diagnostic tool
giving your patients the highest level of examination.

Exceptional optics + LED
The passion for high quality optics is present in the entire optical system – accuracy and reliability give the absolute
confidence in this system. LED is the preferred light source nowadays. Our LED has been selected for its use and
performance with an ideal color temperature and homogeneous light illumination level.

Take control
The control of variable functions of the slit lamp and digital
applications can be done via the slit lamp dashboard, starting
with independently controlled main illumination, exposure time
of the camera (RSL 5000digital and RSL 4500digital) up to camera trigger on the joystick.
To bring it to perfection – the high attention to mechanical parts
provide comfortable handling and smooth operation.

Digital capture + patient management
The RSL 5000digital and RSL 4500digital come with many
features on top of the basic version. Additional to the combined integrated camera and beam splitter the digital series
include a background illumination, diffuser and blue fi lter.
Furthermore the Kapture software with integrated patient
database completes this work station.
The camera and review control functions allow capturing
and examining these images while being stored in the database. All images and data are entered through easy to use
but sophisticated software screens.

Optical system
Type ................................... Parallel binoculars
Magnifi cation .................... Rotating drum change
x6, x10, x16, x25, x40
(RSL 4500 / RSL 4500digital)
x10, x16, x25 (RSL 4300)
Eyepiece ............................ x12.5
Field of view ...................... 34, 22, 14, 8.5, 5.5 mm
(RSL 4500 / RSL 4500digital)
22, 14, 8.5 (RSL 4300)
Interpupillary distance ........ 49 to 77 mm
Objective lens
focal length ......................... 107mm
Objective lens
convergence angle ............. 13°
Slit projection and base
Slit width ........................... 0-14mm continuously variable
Slit length ........................... 14 mm (0-14 mm continuously variable)
Aperture diameters ............0.2, 1 mm square, 2, 3, 5, 9, 14 mm
Filters ................................. Clear, red free, neutral density, diffuser, blue,
IR heat absorbing filter permanently installed
Slit angle ............................ +/- 90° continuous
Slit rotation ........................ +/- 90° with reference scale
Travel base ......................... 25 mm Z-axis, 107 mm X-axis, 110 mm Y-axis
Horizontal fine adjustment ... 12 mm
Fixation lamp ..................... LED
Light source ....................... LED / 12V
Additional Features
Auxiliary diffuser, yellow fi lter integrated to optical body,
TAT-100R optionally available
Dimensions and weight
Dimensions WDH...............350 x 432 x 604 mm
Weight ................................. ~ 19kg
Power supply
Power supply unit .............. Switch mode, (100-240V input) +/-10%
multi plug compliant to EN 60601-1,
EN 61000-6-2, EN 61000-6-3
Power supply output .......... 12V DC / 2.5 A IEC / EN 60 6001
