INS-11006 | Auto Refractometer / Keratometer ARK9600

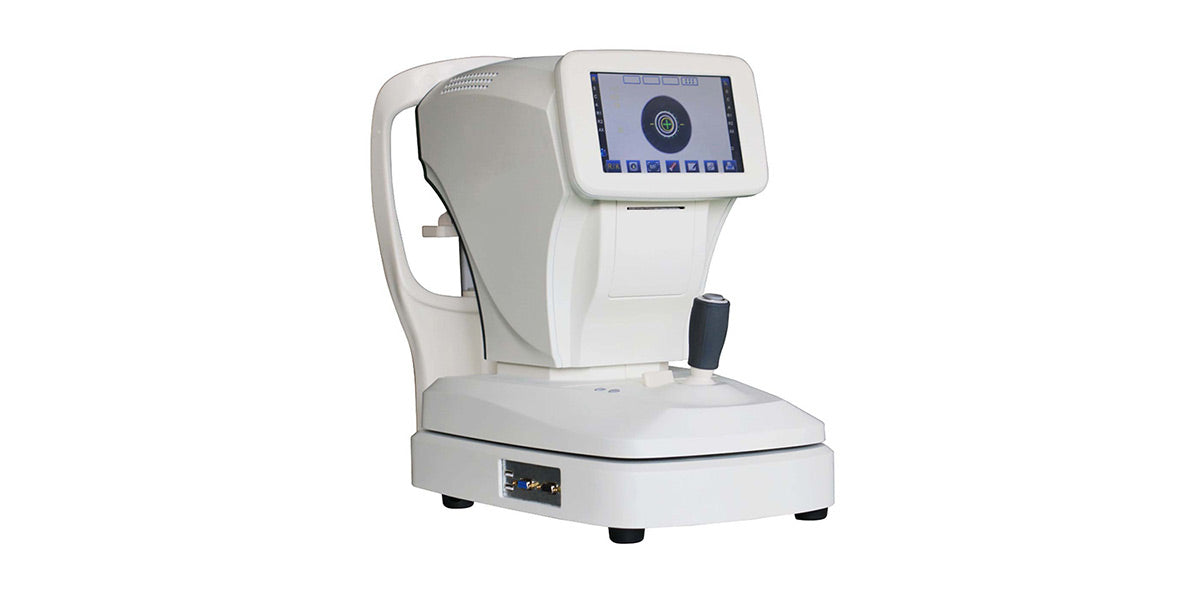

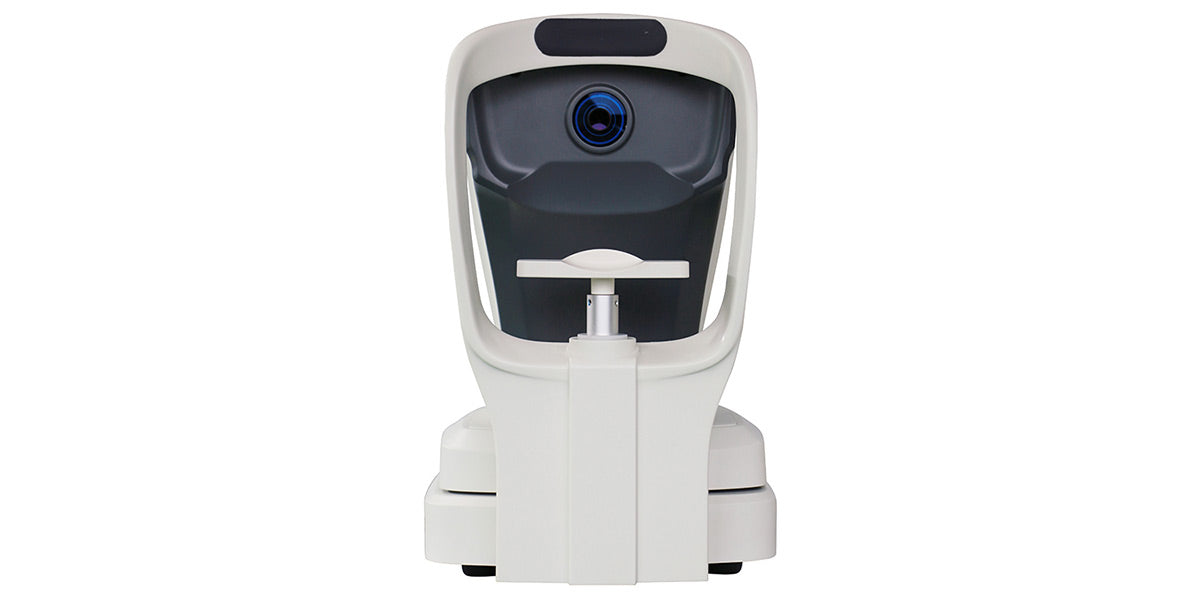

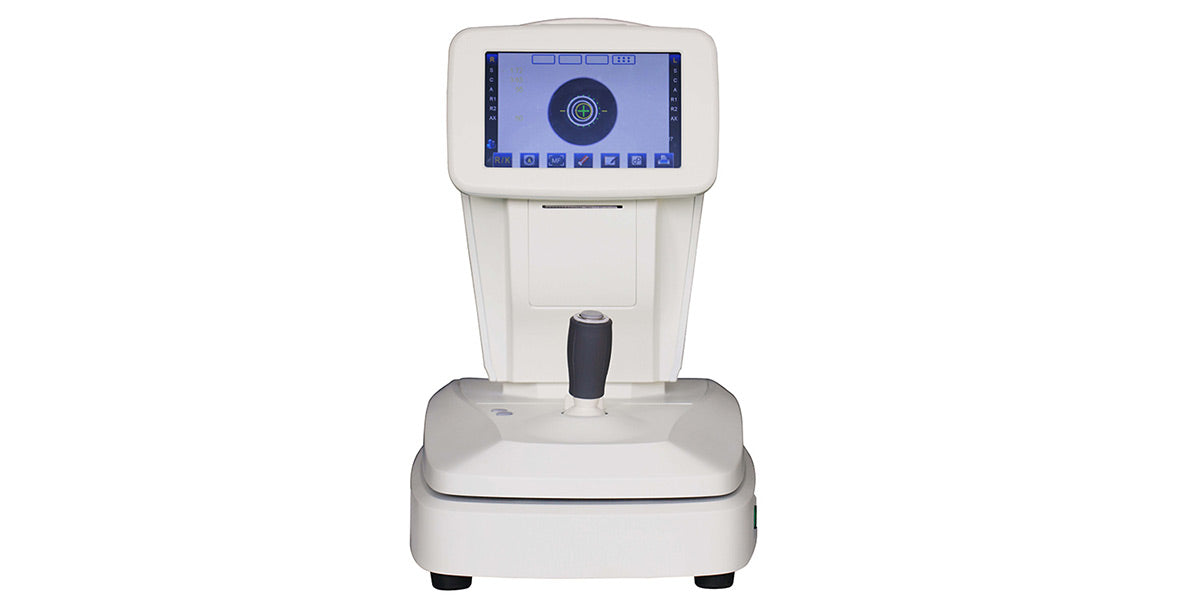

Auto Refractometer / Keratometer ARK9600

Click here to download Manual

Click here to watch Video

The ARK-9600 series Auto Refractometer / Keratometer applied advanced wavefront technology to measure patient's refraction status.

With Hartman sensor and uniquely designed optical system, ARK-9600 can give quick examination and deliver accurate measuring result to the optician and ophthalmologists based on aberration analysis.

Corneal Vertical Distance (VD): 0.00mm, 12mm, 13.75mm, 15mm

PH: -30.00 m -1~ +25.00 m -1( VD=12mm，0.01 m-1、0.06 m-1、0.12 m-1、0.25 m-1 unit ), deep myopia measurement available

CYL: 0.00 m-1 ~ ±10.00 m -1 (0.12 m-1、0.25 m-1 unit)

Cylinder Form: －, ＋, ±

Axis(AX): 1°~ 180° (1° unit)

Pupil Distance (PD): 10mm ~ 85mm(0.1mm unit)

Radius of Corneal Curvature: 5.0 ~ 10.0mm (0.01mm unit)

Corneal Power: 33.00 m-1~ 67.00 m-1 (in case that the corneal equivalent refractive power is 1.3375)

Corneal Astigmatism: 0.00 m-1 ~ 15.00 m-1 (0.06 m-1/0.12 m -1/0.25 m -1 unit) 7″TFT touch screen (angle adjustable)

Printer: 57mm thermal printer Measuring Light Energy: ＜30uW (prevent injury to eyes during measuring)

Measuring Time: ＜0.5s

Minimum 2.0mm pupil can be measured. The application of cloud and mist chart technology allows the patients' eyes to look at the internal targets in a natural and comfortable situation and make the measurement more accurate

Electrical Power: AC100~240V, 50/60Hz

Consumption: 60AV

NW: 17.25 kg

GW: 22.5 kg

Dimensions: L750mm×W400mm×H630mm
