INS-11030 | Digital Lensmeter SML 800

Click here to download Manual

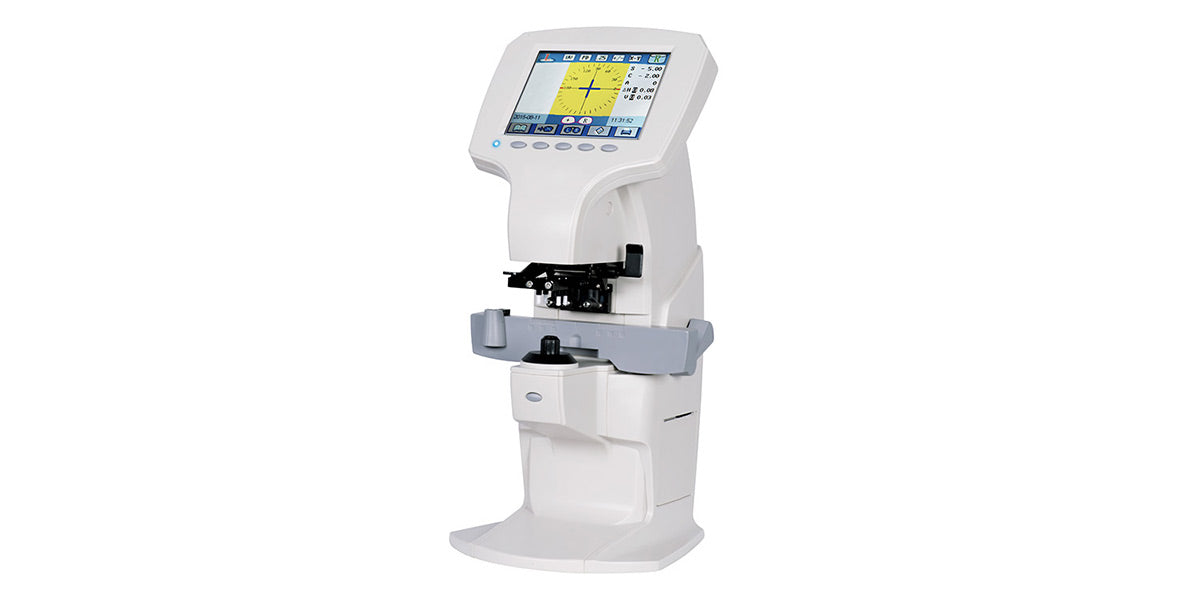

Digital Lensmeter SML 800 model INS-11030.

-Green LED light source, ABBE compensation not required

-Hartman testing method, CPU high-speed precise computing

-Automatic identifying the lens type

-Automatic measurement

-Automatic reading and memorying the data

-5.7 inch high resolving power LED screen

-Broad contents, strong performances, simple and convenient operation

Measuring range:

Sphere：0 to ±35D（0.01D/0.06D/0.12D/0.25D steps)

Cylinder: 0 to ±10D（0.01D/0.06D/0.12D/ 0.25D steps)

Axis: 0°to 180°（1°step)

ADD: 0 to 10D（0.01D/0.06D/0.12D/0.25D steps)

Prism: 0 to 15△(0.01△)

Cylinder mode: +, +/-, -

Prism mode:

XY: cartesian coordinates H:I,O; V:U,D.

PB: polar coordinates

mm: mm expression

Reading resolving power:0.01D,0.06D,0.12D,

0.25D

PD measure

Measure single vision lens, bifocal lens, trifocal lens and progressive lens, etc.

Contact lens measurement

UV transmissivity

Measurable transmissivity: ＞10%; ＞20% at ±10D and over

Contact lens: 0 to ±25D, BC 6.00 to 9.00

Display: 5.7 TFT LCD

Menu: readable diagram, easy operation

Lens diameter: 20mm～100mm

Power source: AC100(±10%)～240(±10%)V, 50/60HZ, 40VA

Power consumption: 40W

N.Weight: 4kg

Dimensions：190*210*420mm（W*D*H）

Environmental condition:

Temperature：5℃～40℃（in usage）-20℃～60℃（in storage/transference）

Humidity：30～85%（non-condensing）(in usage）10～95%（in storage/transference）

Atmospheric pressure：700～1060hpa

Altitude: up to 2000m

Others: no harmful dust or smoke

Optional accessories：printer（built-in thermosensitive paper size：57mm）

Dimensions: 7 x 8 x 16 in / 18 x 20 x 41 cm

Weight: 9 lb / 4 kg
