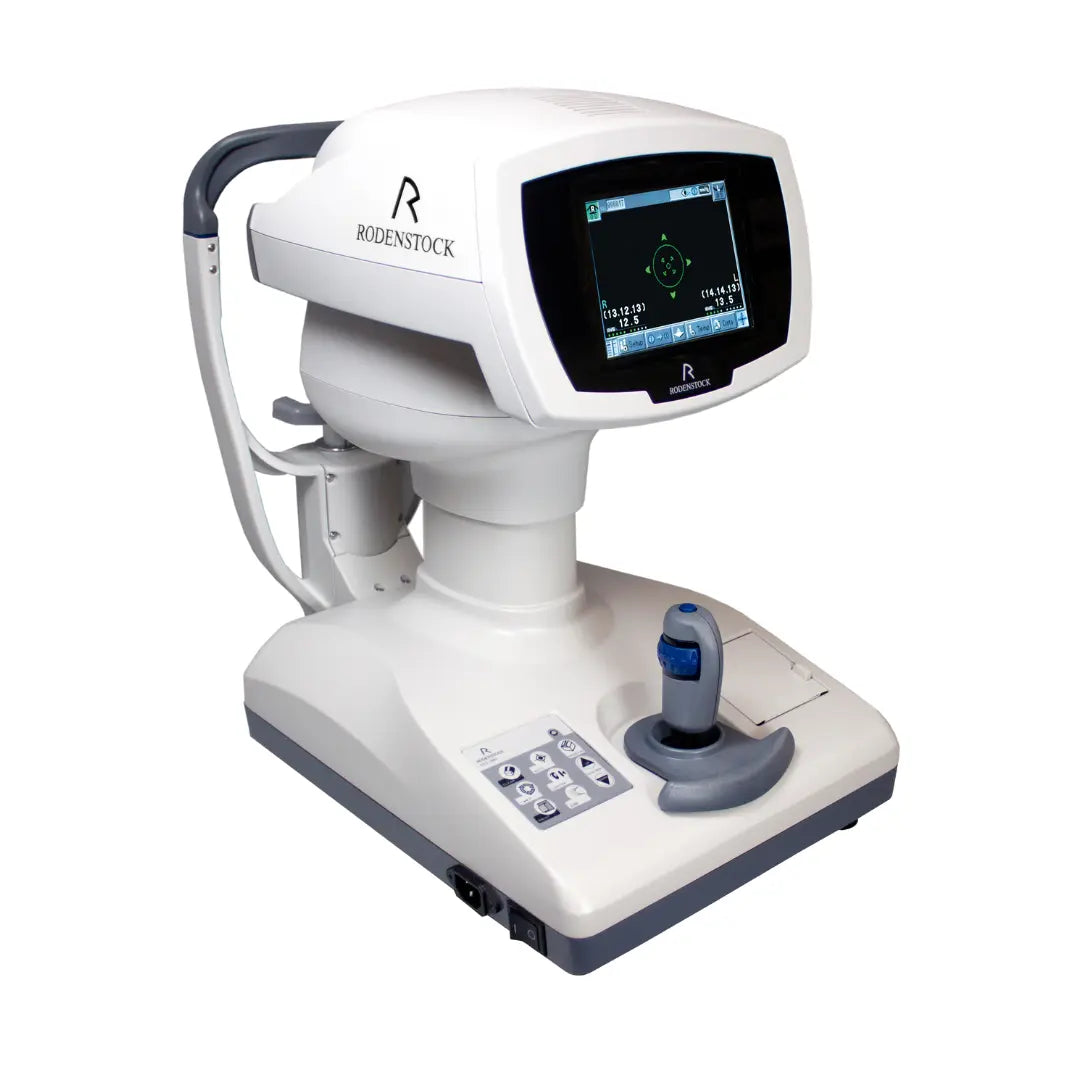

NCT 2000 Non-Contact Tonometer



  • Touch screen alignment system
  • Cornea thickness related IOP correction
  • Auto alignment + auto shot
  • Soft and silent air pulse
  • High speed measurement

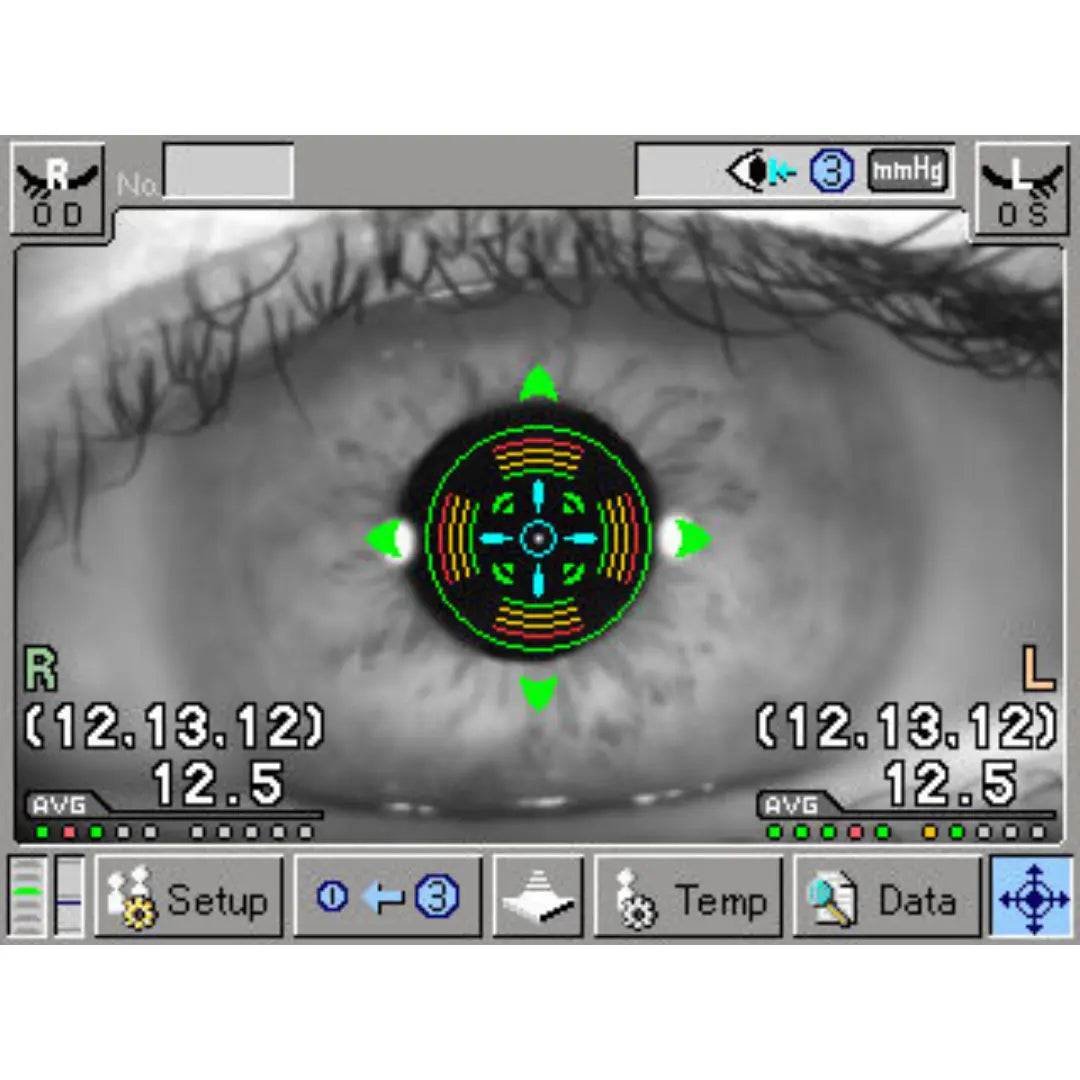

Touch-screen alignment system
The 5.7 inch colour touch-screen is used to monitor operation and display the measurement results. The measurement head can be moved in all directions simply by touching the screen. All commands are inputted via touch-screen.

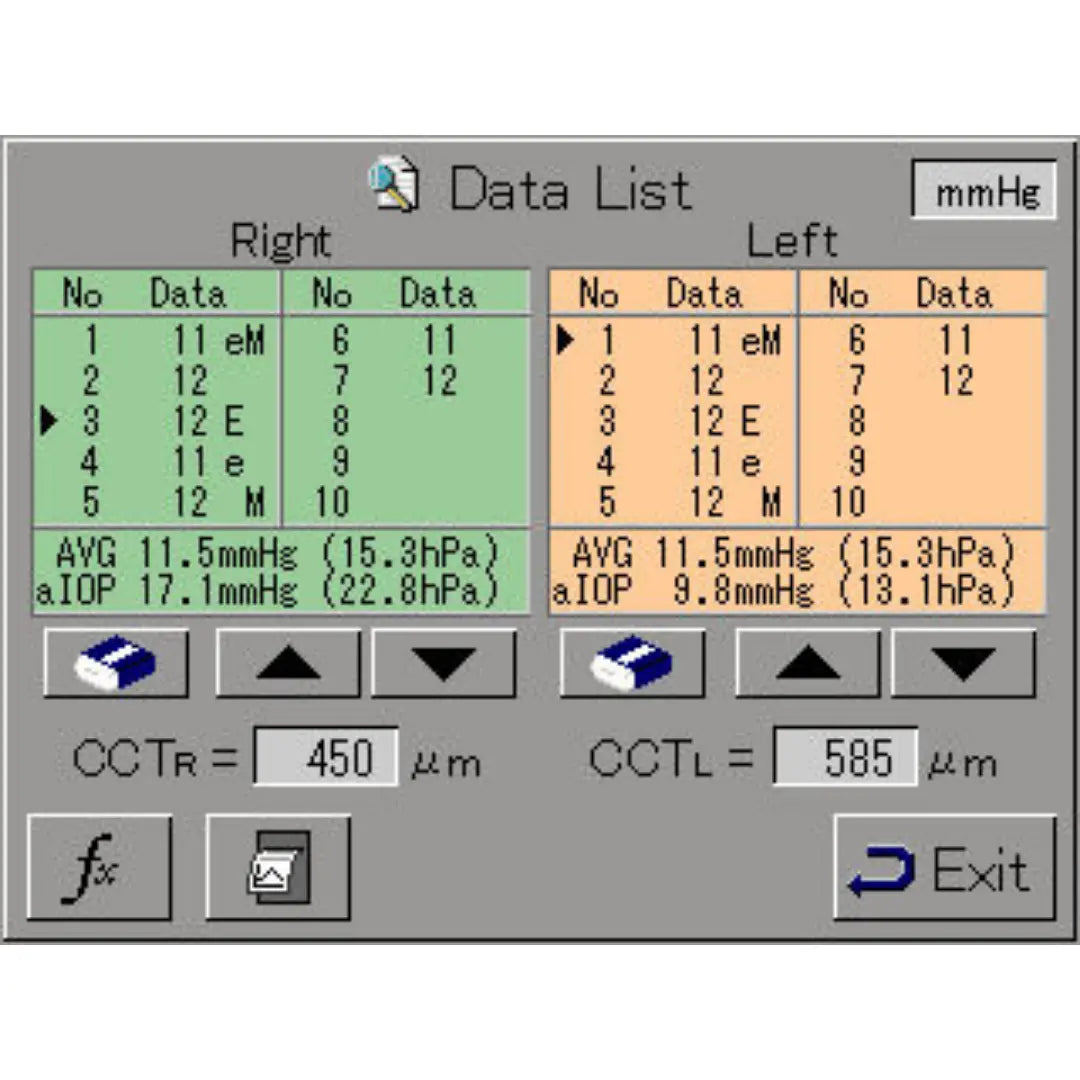

Cornea thickness related IOP
You can easily adjust the measured IOP data according to the central corneal thickness. The calculation formula used by the NCT 2000 is easily amended according to your own preference.

Auto-alignment + auto-measurement
Operating the NCT 2000 couldn’t be easier. Simply align the measurement head towards the patient’s eye and the instrument takes over, handling fine adjustment and measurement all by itself. Once the first measurement is
completed, the colour touch-screen displays a prompt to automatically repeat the measurement process on the other eye.

Soft and silent air pulse
For the comfort of your patient the NCT 2000 is designed to use a very gentle air pulse. Even the noise generated by the instrument is reduced to the minimum, thereby relaxing your patient to facilitate highly accurate results.

High speed measurement
If you choose the multi measurement option the NCT 2000 produces up to three air pulses in an extremely short sequence (0.1 seconds each).

SPECIFICATIONS
Measuring intraocular pressure
Measurement range ..........0-60 mm Hg,
(0-30 mm Hg / 25-60 mm Hg)
Measurement ...................1 mm Hg (1 hPA) increments
within the measurement range
Energy and other consumption
Light source ......................Light emitting diode
Prism ................................880 nm
Sight-fi xing lamp
Light source ......................Light emitting diode
(3-colour chip)
Wavelength ......................Red 630 nm
Green 520 nm
Blue 470 nm
Output ..............................Red < 0.1 µW (Limit 1:3.7 µW)
Green < 0.1 µW (Limit 1:3.7 µW)
Blue < 0.1 µW (Limit 1:3.7 µW)
Light for anterior eye segment
Light source .....................Light emitting diode
Wavelength ......................780 nm
Output ..............................< 100 µW (Limit 1: 450 µW)
1 AEL Class 1 Conforming
to IEC 60825-1:2001
Standards applied .............MDD ANNEX II, ISO 13485
Main unit
Built-in printer ...................Thermosensitive line printer
Stroke of moving
section ..............................88 mm (X-axis)
40 mm (Y-axis)
45 mm (Z-axis)
Stroke of chin rest .............70 mm
Data output type ..............RS-232C
Display ..............................5.7” colour LCD
Dimensions & electrical requirements
Dimensions WDH ..............306 √ó 493 √ó 463 mm
Weight .............................Approx. 18.0 kg
Input ................................AC 100 V to 240 V
Frequency ........................ 50 / 60 Hz
Power consumption ......... Less than 85 VA
