240-940 | PERISMART Automated Perimeter

PERISMART Automated Perimeter

• 50 degrees horizontally, 30 degrees vertically
• Modern eye tracking
• Early Glaucoma detection
• LED-technology
• White on white stimulus
• High reproducibility
• Easy and fast operation
• Multiple illustration possibilities
• Small, compact and portable
• Reliable fixation control / digital eye tracking

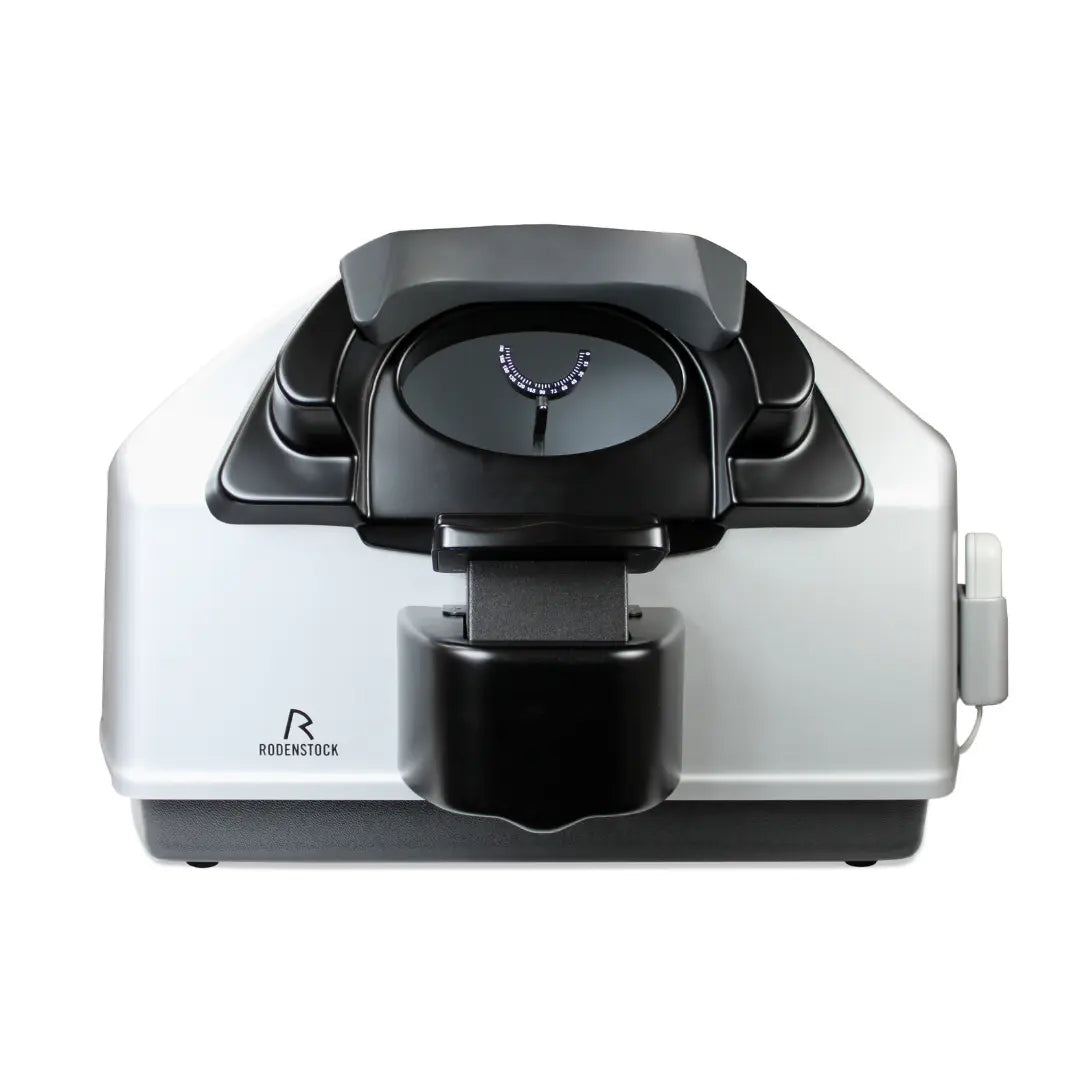

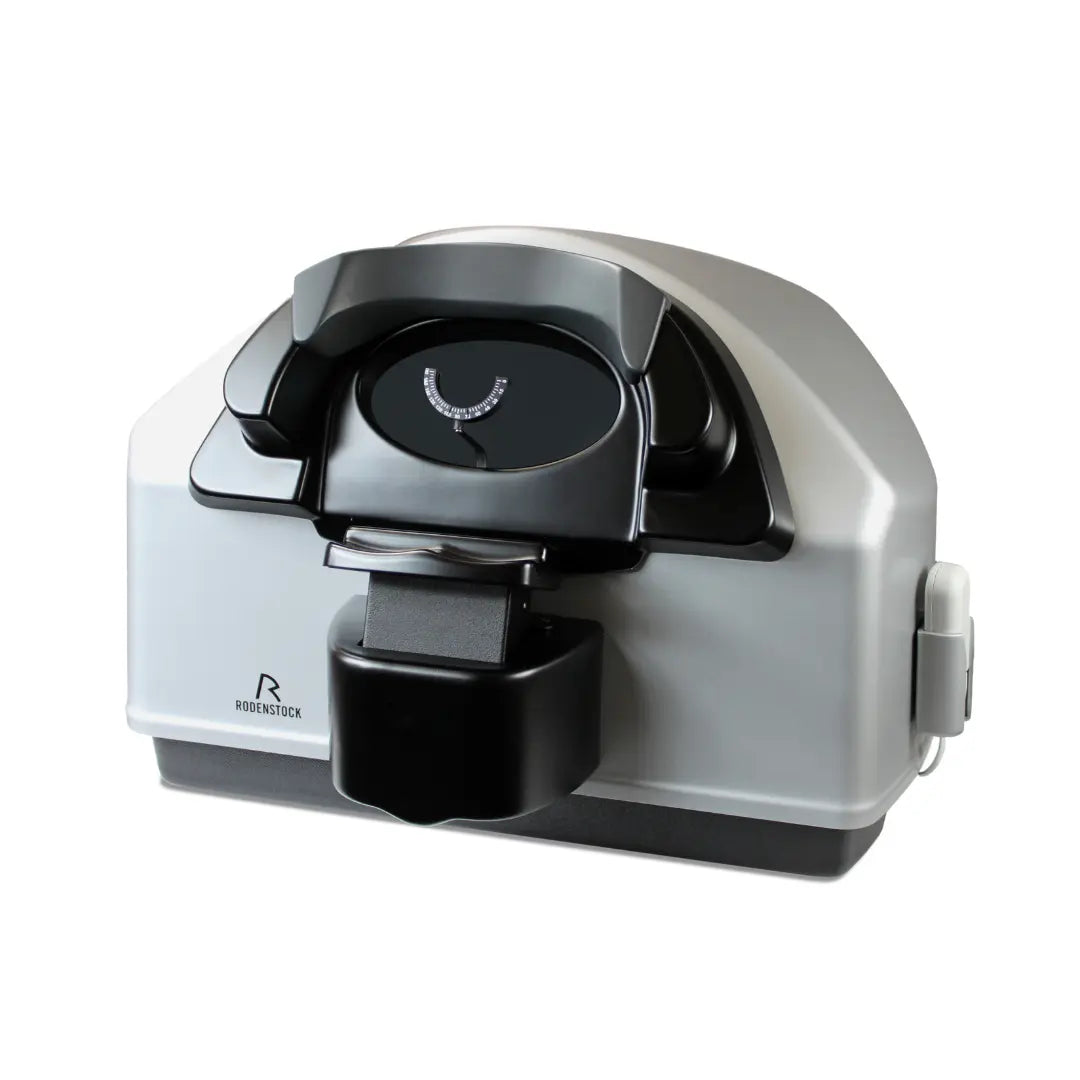

A literally ‘easy-to-handle’ solution for modern perimetry and screening – the Perismart is a compact, portable and mobile device combined with the advantage of a hemispherical perimeter. Shielded insight, electronic controlled chin rest and last but not least a structured and user optimised application software are only a few out of many other nameable points.

The software operation plus features as customised menu configuration and follow-up pattern appliance make the Perismart an ideal working equipment.

The Perismart complies with the demands of
industrial and occupational medicine (FeV) and shows test fields which correlate according to these requirements.

SPECIFICATIONS
Stimulus bowl type............................ Part hemispherical
Bowl radius....................................... 300 mm
Eccentricity........................................ 50° horizontal (+30° mov. fix. point)
30° vertical (+10° mov. fix. point)
Background illumination.................... 10 cd/m² (32asb)
auto level control
Stimulus............................................ LED, white, Goldmann III
Stimulus intensity .............................. 0.01 cd/m² (0.03 asb) to
333,33 cd/m² (1000 asb)
3dB/1dB
Exposure time .................................. 0.1 to 9.9 sec adjustable
Chin rest adjustment......................... Electrically controlled
Fixation control ................................ Heijl Krakau (blind spot
method) and CCD camera
(digital eye tracking)
User interface.................................... Multilingual
Dimensions & weight
WDH................................................. 548 x 450 x 382 mm
Weight.............................................. Approx. 9 kg
Electrical requirements
Input ................................................ 115 to 230 V
Frequency ......................................... 50/60 Hz
Power consumption .......................... Max. 60 W
