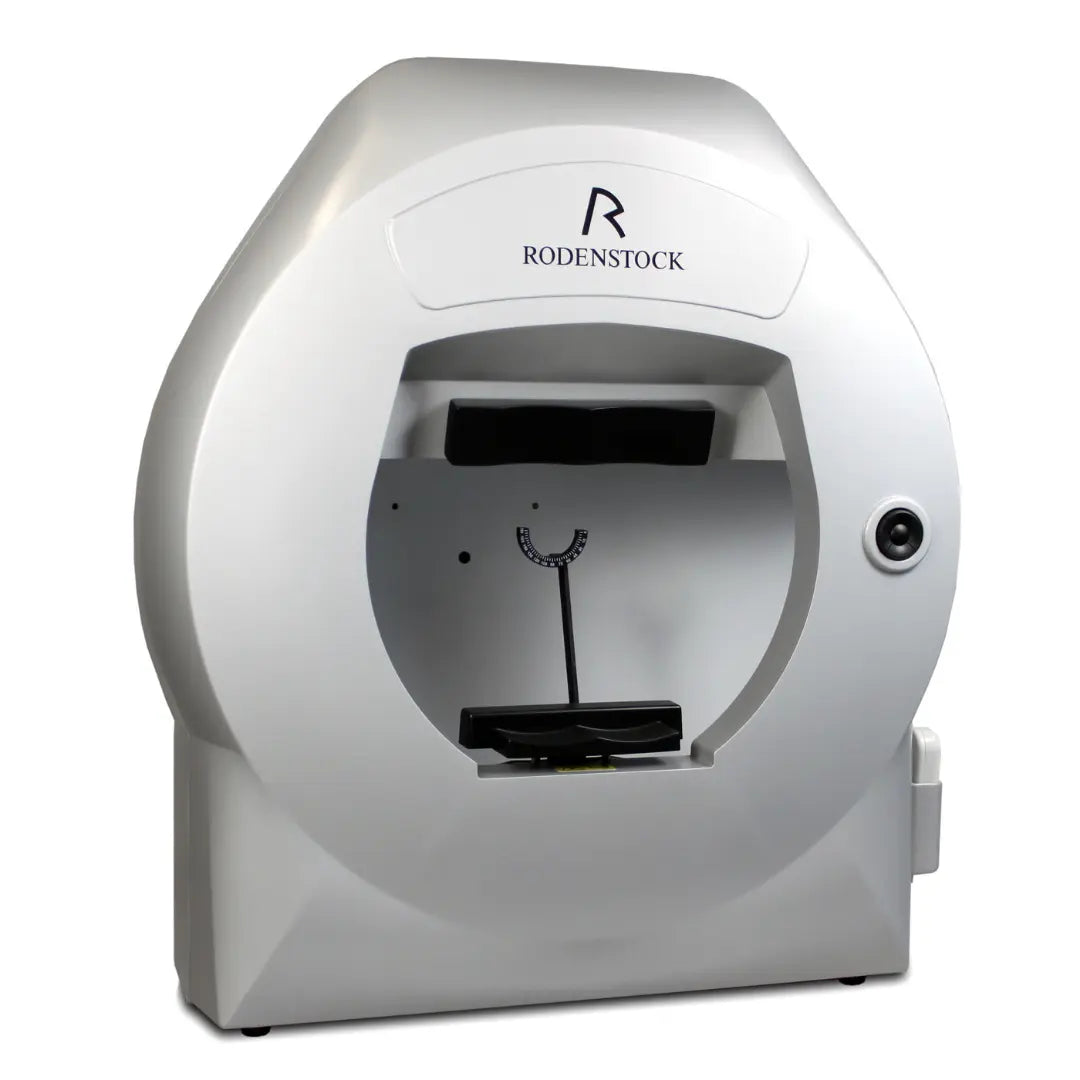

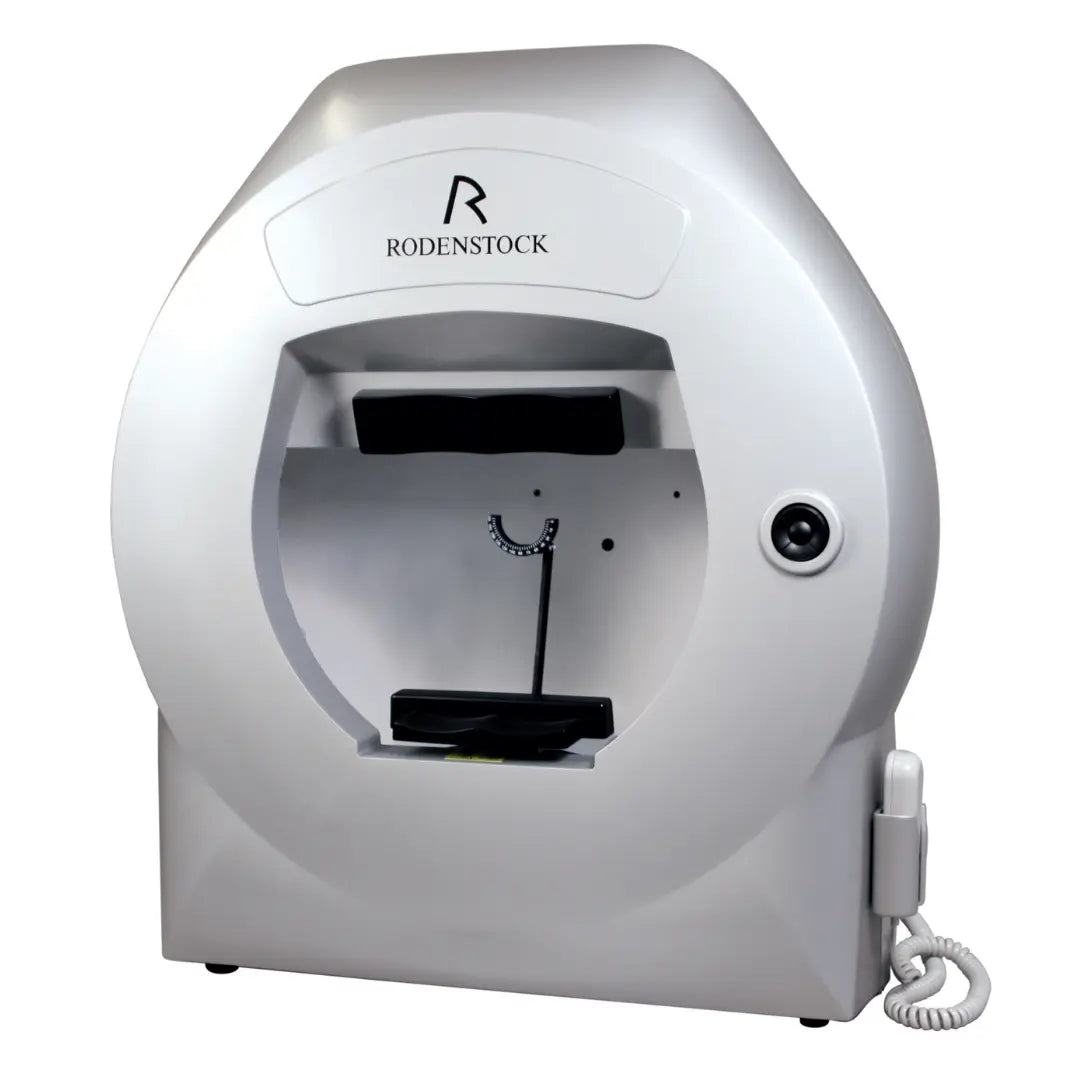

240-951 | PERISTAT Automated Perimeter

PERISTAT Automated Perimeter



• Static testing
• Digital eye-tracking
• Goldmann size stimuli
• Standardised driver test
• Electronic chin rest

Both Rodenstock Perimeters are developed to meet the needs of today’s clinical practitioner. The Perimat offers high-end performance matching the latest standards in modern perimetry. The Peristat is designed to fulfi ll all standard tests in return for a modest investment.

Modern Eye Tracking System
Both Systems are equipped with a “state of the art” digital passive eye tracking system. It records only measurements taken under perfect fixation conditions. Rejected recordings will be automatically repeated. The patient’s eye is displayed at any time during the examination for visual control by the examiner. Fixation control using the Heijl-Krakau method is also integrated.

Short Examination Time
Due to the fact that the units can take former testing protocols of the same patient into consideration, the examination time can be reduced tremendously. Already known defects will be screened and not necessarily checked through a complete testing routine again. With the automated adaption to the patient response the system is able to optimize all time parameters with full result credibility.

Modern Data Handling
The Perimat comes with an integrated modern PC that communicates with all USB printers. All acquired data can be transmitted to a network and sent in many different formats depending on individual requirements. The design of the Perimat is more compact due to the integrated PC. This saves valuable space and reduces cables. The Peristat can be connected individually to a standard PC or Laptop making confi guration economical and flexible.

Pupil Measurement
It is possible to measure the pupil diameter at any time even before, after or during the examination.

LED–Technology / Blue on Yellow Test
Both systems integrate the LED background illumination and provide a standardised blue on yellow test routine, using Goldmann V fixation spot size. Kinetic test mode: Stimulus with adjustable size, intensity and speed is moving from the periphery to the centre of measurement bowl.

Kinetic and Static Driving Test (Perimat)
The integrated standard driving test can be modifi ed according to every individual demands, in kinetic or static routine. (Peristat static only)

SPECIFICATIONS PERISTAT / PERIMAT
Measurement bowl (Closed bowl with mechanical ventilation)
Radius ...............................30 cm
Measurement range ..........±50º
Fixation targets ..................Central, yellow LED 588 nm
? 2 fi xation targets located at ±30º for driver tests (160º measurement range)
? 2 fi xation diamonds (no central vision and fovea sensitivity)
Test fi elds green/white blue/yellow
Full 50° 165 points 164 points
Glaucoma 22°/50° 101 points 100 points
Central 22°/30° 93/117 points 92/116 points
Wide 22°/30° 128 points 127 points
Peripheral 30°-50° 72 points 72 points
Macula 10° 45 points 44 points
Driving 50°/80° 189 points 188 points
Bowl illumination LED illumination
? 3.2 cd/m² or 10 cd/m² for white colour
? 100 cd/m² for yellow colour
Stimulus ............................Goldman size III, V
Colour ...............................Blue, green
Max stimulus brightness ...10 000 Asb
LED light source ................Embedded stimulus intensity control system
Fixation monitoring ...........Eye tracking with digital camera, Hejil-Krakau blind spot monitoring
Chin/Rest
Movement ....................... Electric two directions controlled
from software or on front push
buttons
Kinetic test (Perimat only)
Test fi eld ..........................30°, 40°, 50°
Meridian angles ...............0° to 360° with steps of 10°, 15°,
20°, 30° or 45°
Isopters ............................8
Stimulus speed ................2°/s, 4°/s, 6°/s, 8°/s
Embedded PC (Perimat only)
Operating system .............Windows embedded, 1 GB RAM,
250 GB hard disc
Connectivity ....................CRT, Ethernet, Audio, 3 x USB
Dimensions and electric requirements
Dimensions (WxDxH) .......566 √ó 633 √ó 396 mm
Weight ............................Approx. 19,5 kg
Input ...............................115 to 230 V AC
Frequency ........................50/60 Hz
Power consumption .........Less than 95 VA
