Descripción

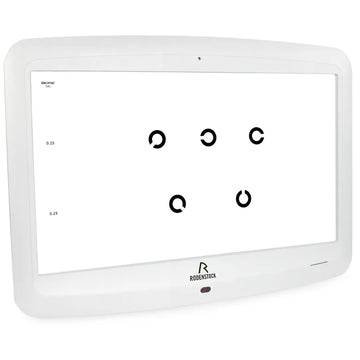

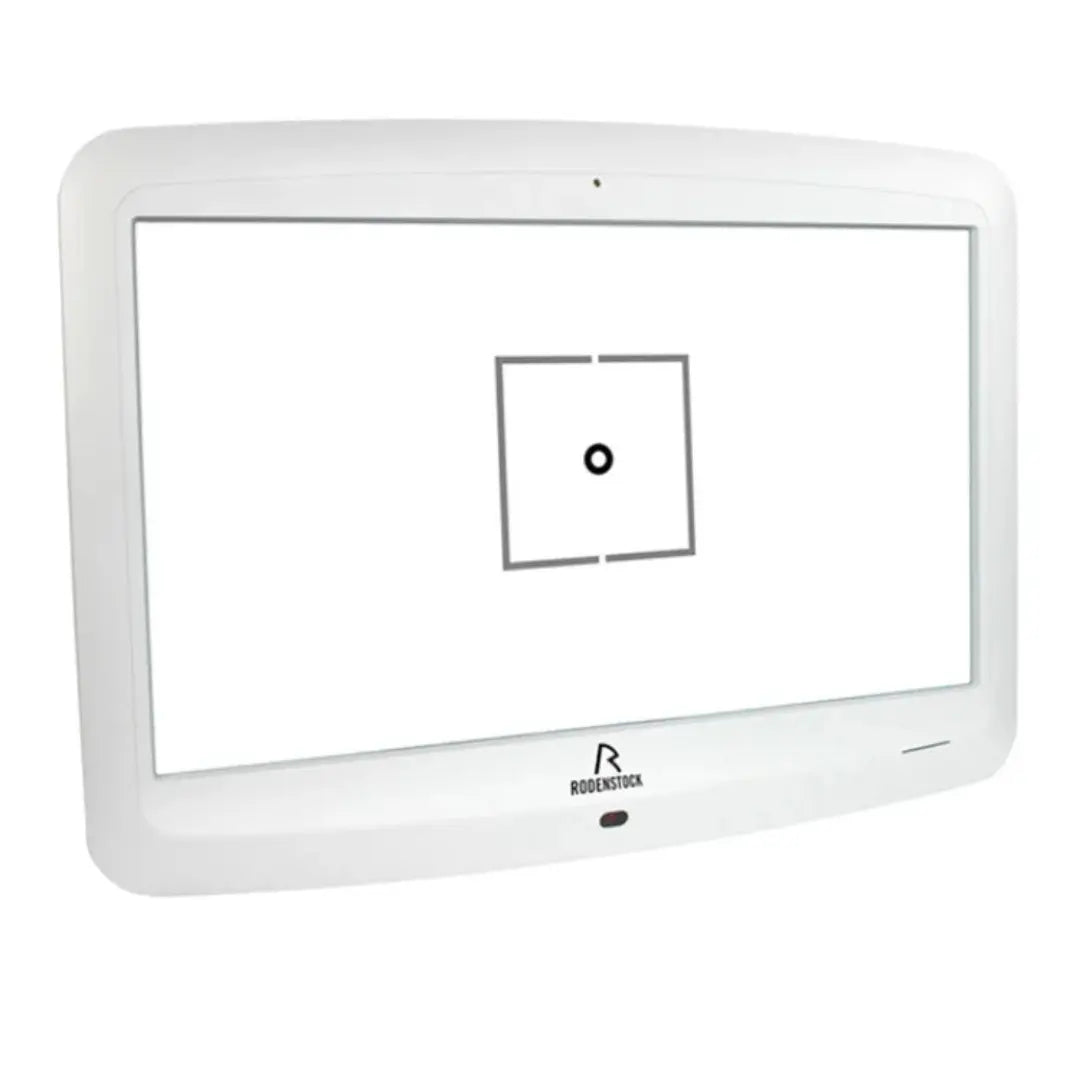

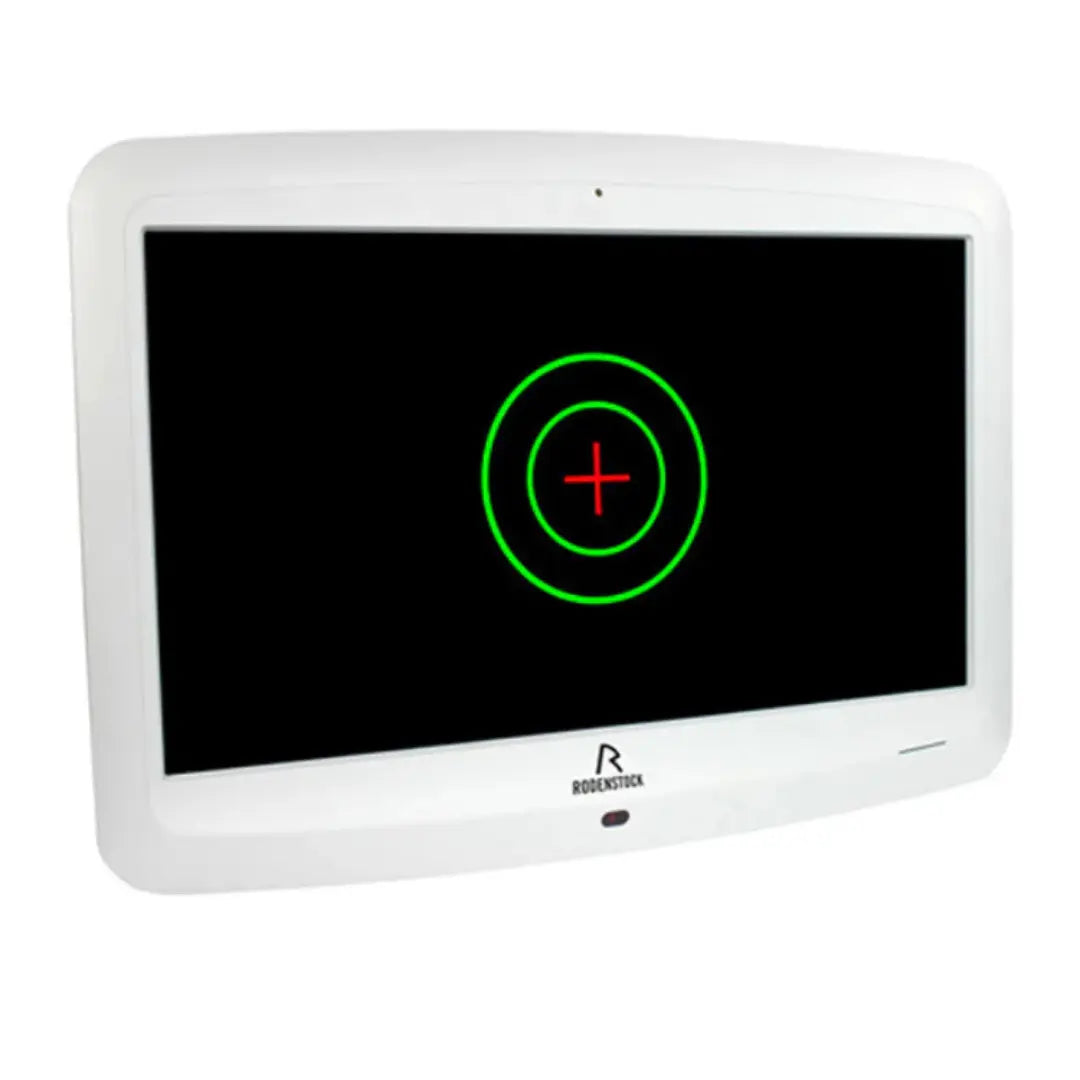

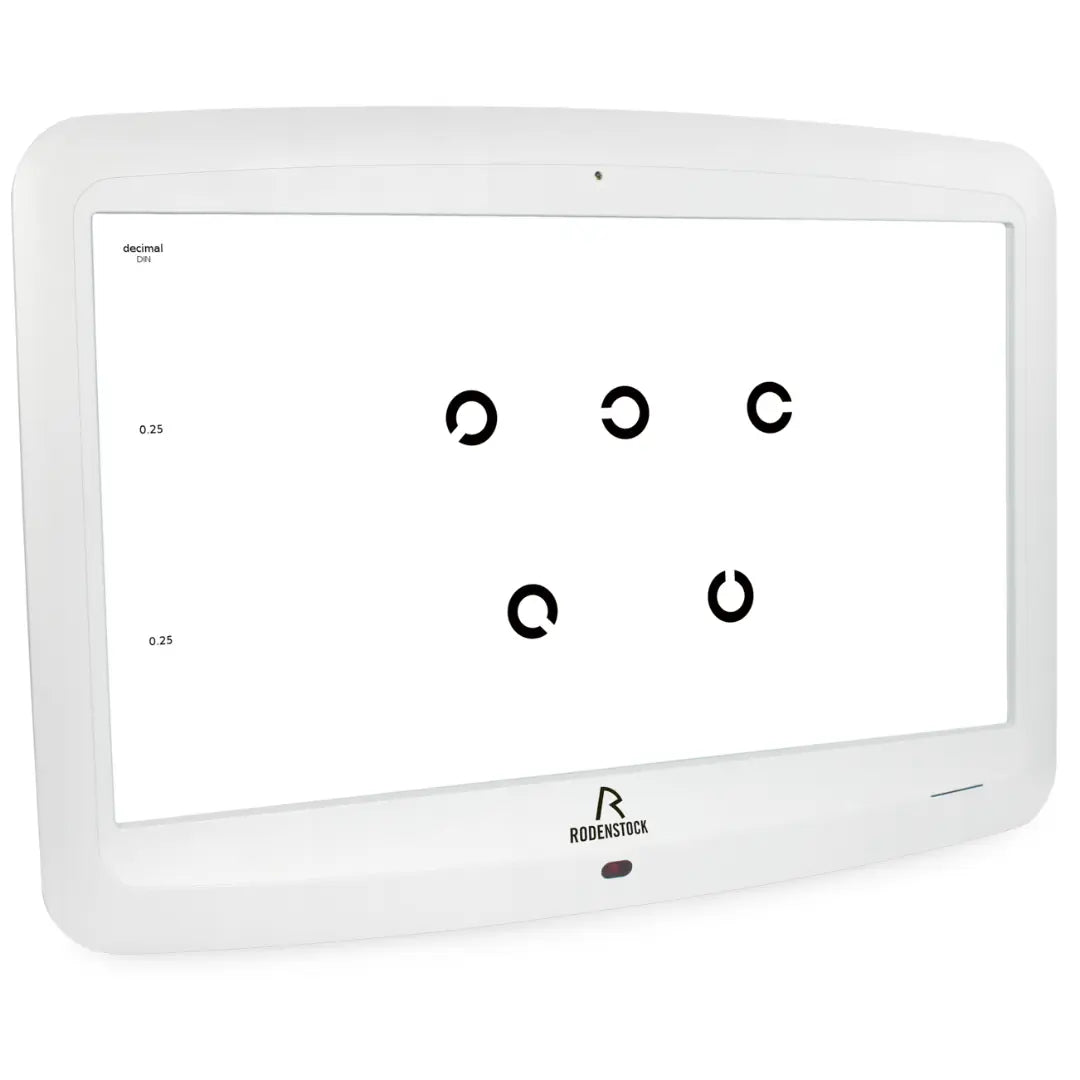

Rodenstock Chart Panels – Comprehensive Refraction Testing
Precise refraction. Modern design. Complete functionality.
The Rodenstock CV 600 chart panel delivers precise and reliable vision testing with a modern, user-friendly design. Equipped with a wide selection of charts and tests, it provides optometrists and ophthalmologists with all the essential tools for accurate refraction and advanced visual assessments.
Key Benefits
- Precise refraction – Accurate vision charts tailored to every need.
- Increased competency – Comprehensive range of special tests for enhanced diagnostic confidence.
- Cross-age charts – Includes fixation targets specifically designed for children.
- Quality and style – Proven Rodenstock quality combined with a sleek, modern design.
- Personalisation – User-defined test sequences to adapt examinations to patient needs.
- Connectivity – Seamless wireless integration with Phoromat 2000 for a smooth workflow.
Core Features
- Quick change of optotypes, visual acuity units, and test types.
- Extensive selection of charts: optotypes, astigmatism tests, red-green, low vision, EDTRS, Amsler grid, crowding bars, and color tests.
- WiFi or Bluetooth communication with the Phoromat 2000.
- Uniform design for consistent appearance across Rodenstock systems.
✅ The CV 600 is the ideal solution for practices that require accuracy, versatility, and style – ensuring reliable refraction and an improved patient experience.
Specifications
| SPECIFICATIONS — CV 600 (Chart Panel) | |
| Working distance | 2 m to 7 m |
| Visus units | Decimal, LogMar, metric, feet |
| Display size | 23″ LCD Full HD |
| Image separation | Red-green |
| MKT test sequence | ✔ |
| IR remote control (3 channels) | ✔ |
| System integration to automated phoropter | ✔ |
| IR connection via CommBox (optional) | ✔ |
| Wall-mount adapter (VESA 100) | ✔ |
| USB port | ✔ |
| OPTOTYPES | |
| Osterberg | ✔ |
| EDTRS | ✔ |
| Crowding bars | ✔ |
| Hearing impaired | ✔ |
| Low vision | ✔ |
| Optotype contrast adjustment | ✔ |
| VA TESTS | |
| Cross-grid | ✔ |
| Amsler grid | ✔ |
| Astigmatism dots | ✔ |
| Astigmatism clock | ✔ |
| BINOCULAR TESTS — RED-GREEN | |
| Schober | ✔ |
| Worth | ✔ |
| Fixation disparity | ✔ |
| Bichrome balance | ✔ |
| SPECIAL TESTS | |
| Contrast sensitivity | ✔ |

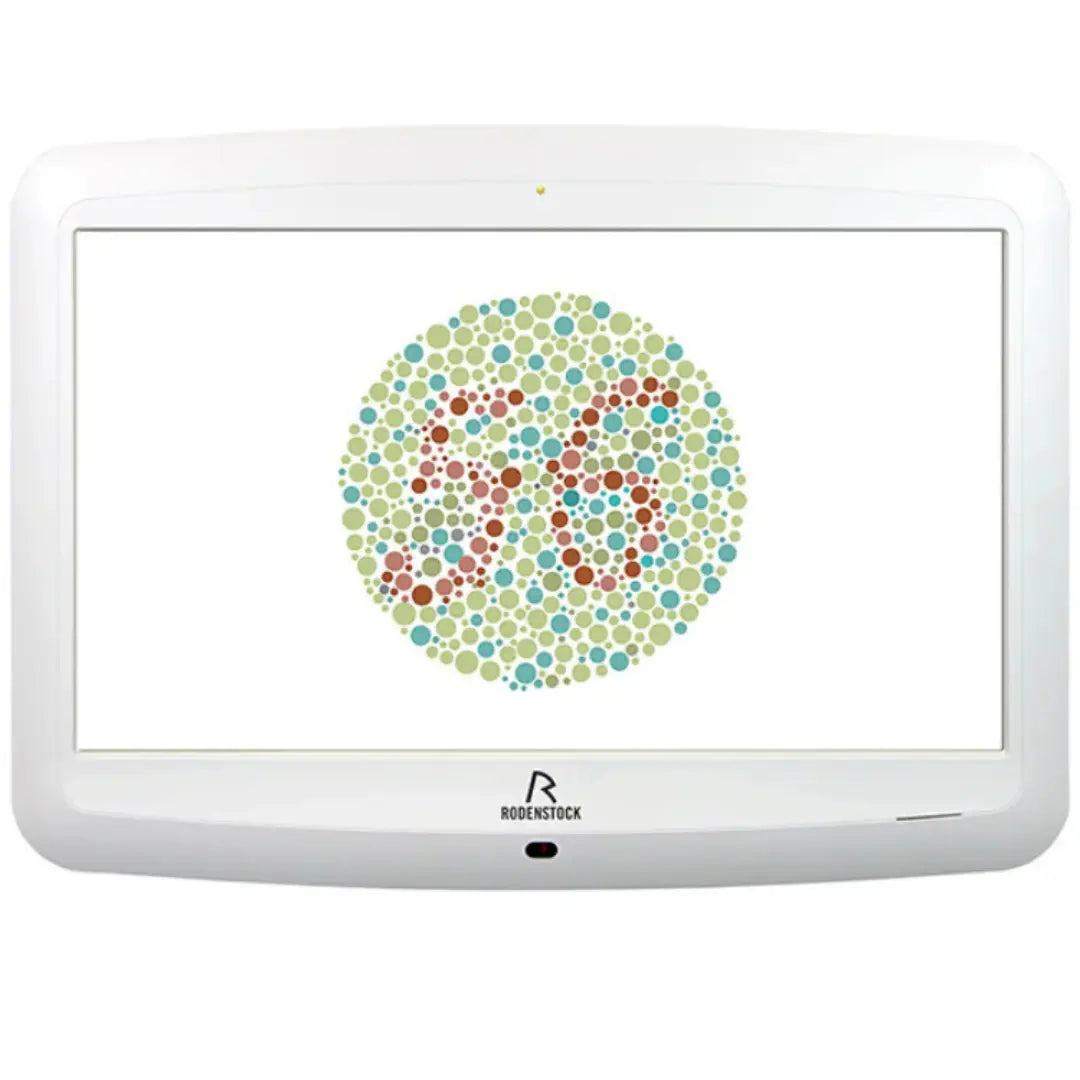

| Colour vision test | ✔ |
| MASKS | |
| Single optotype, horizontal/vertical line | ✔ |
| Red-green | ✔ |
| DIMENSIONS | |
| Dimensions (W×D×H, incl. frame) | 583 × 55 × 423 mm |
| Weight | 5.7 kg |
| Input | AC 100 V / 240 V |
| Frequency | 50/60 Hz |
| Power consumption | 35 – 45 VA |
