Descripción

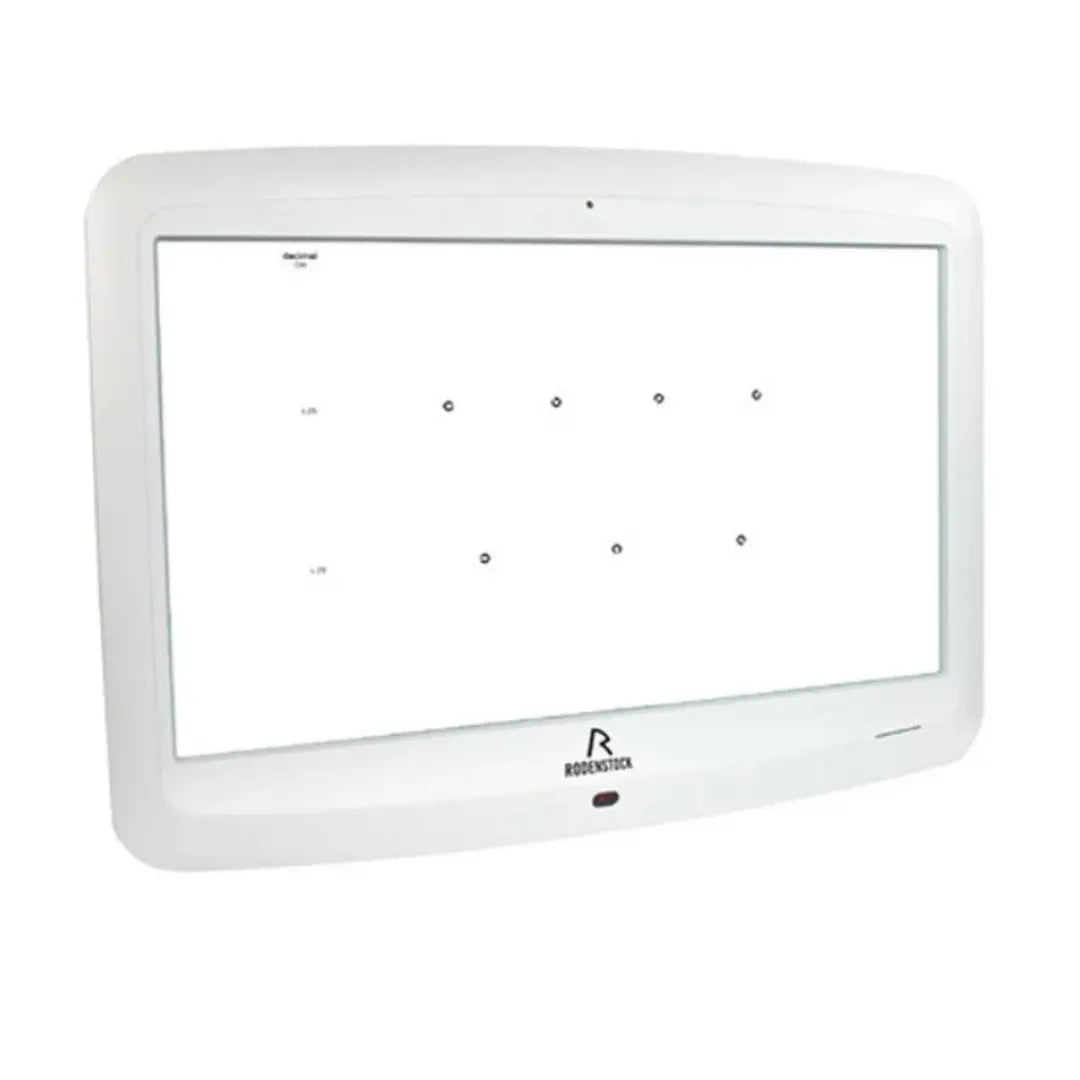

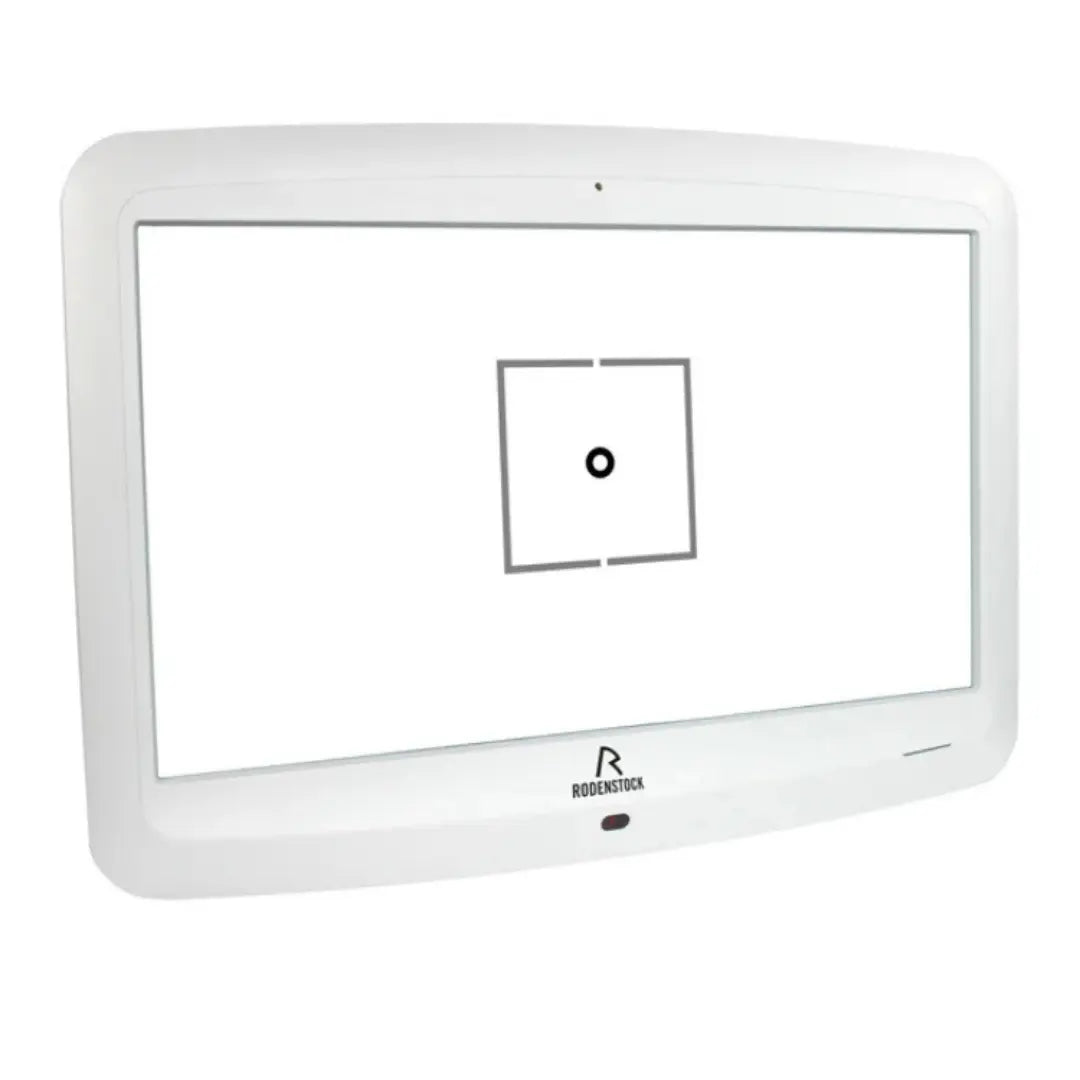

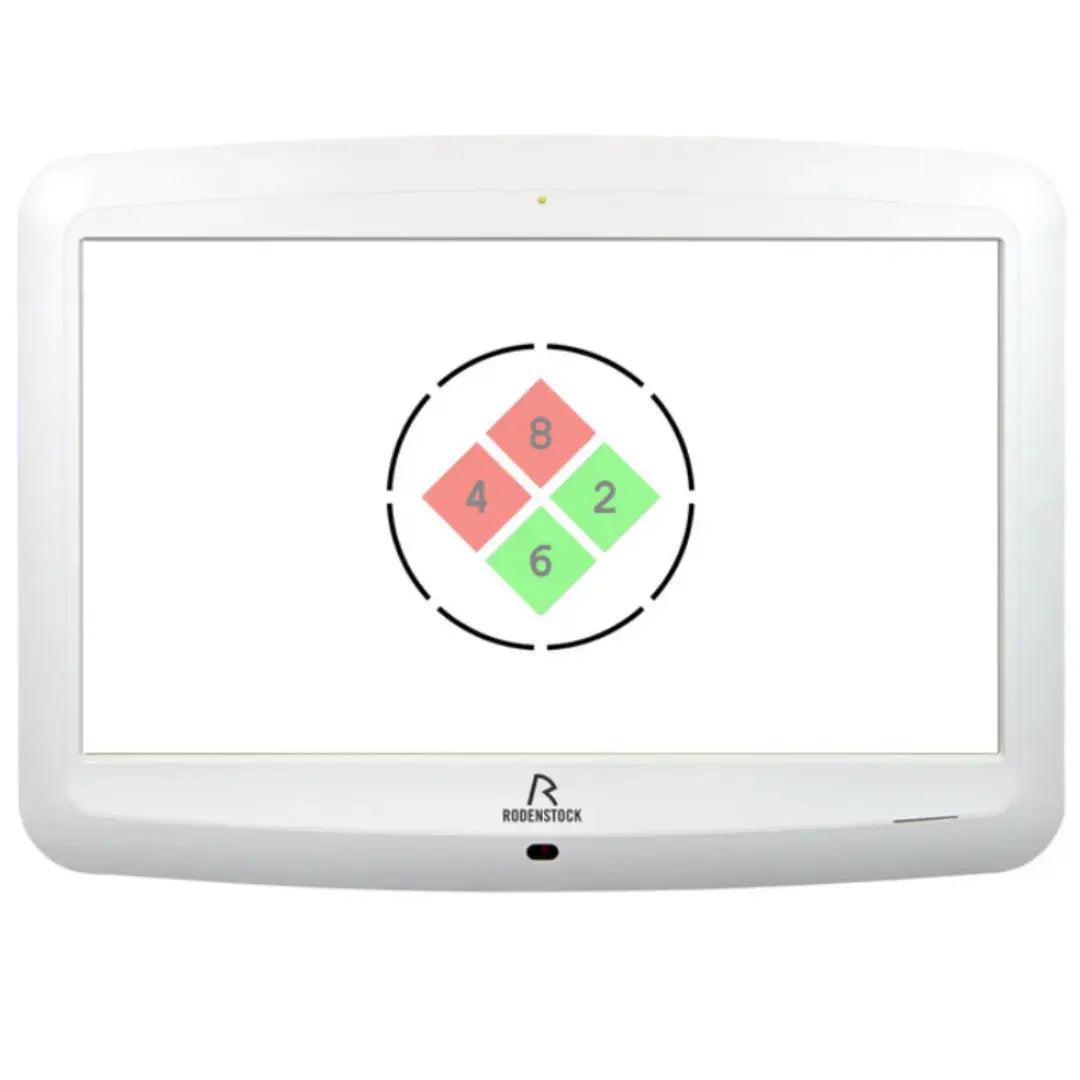

Rodenstock Chart Panels – Comprehensive Refraction Testing
High-Quality Polarisation. Precise Visual Testing.
The CV 800P is a premium polarising chart panel designed to provide accurate and comprehensive refraction and binocular vision testing. Equipped with linear polarisation, it ensures precise image separation and reliable results for a wide range of clinical applications.
Key Features
High-Quality Polarising Display
- Delivers superior image separation for accurate binocular testing.
- Supports precise evaluation of heterophoria and stereo vision.
Comprehensive Test Selection
- Includes the MKH (Measuring and Correcting Methodology according to Haase) test sequence.
- Quick and seamless switching between optotypes, visus units, and visus types.
Connectivity & Compatibility
- Wireless communication via WiFi or Bluetooth with the Phoromat 2000.
- Uniform design integration with the Phoromat 2000 system for a modern, cohesive setup.
Benefits for Your Practice
- Reliable performance for advanced refraction and binocular vision testing.
- Smooth workflow thanks to wireless connectivity and intuitive operation.
- Modern, ergonomic design that enhances both patient experience and practice efficiency.
✅ The CV 800P is the ideal solution for clinics and practices that require precise polarising displays and advanced test sequences, ensuring consistent and dependable results every time.
Specifications
| SPECIFICATIONS — CV 800P (Polarising Chart Panel) | |
| Working distance | 2 m to 7 m |
| Visus units | Decimal, LogMar, metric, feet |
| Display size | 23″ LCD Full HD |
| Image separation | Red-green, Polarising |
| MKT test sequence | ✔ |
| Driver’s license sequence | ✔ |
| IR remote control (3 channels) | ✔ |
| System integration to automated phoropter | ✔ |
| IR connection via CommBox (optional) | ✔ |
| Wall-mount adapter (VESA 100) | ✔ |
| USB port | ✔ |
| OPTOTYPES | |
| Osterberg | ✔ |
| EDTRS | ✔ |
| Crowding bars | ✔ |
| Hearing impaired | ✔ |
| Low vision | ✔ |
| Optotype contrast adjustment | ✔ |
| VA TESTS | |
| Cross-grid | ✔ |
| Amsler grid | ✔ |
| Astigmatism dots | ✔ |
| Astigmatism clock | ✔ |
| BINOCULAR TESTS — POLARISING | |
| VA balance | ✔ |
| Horizontal/vertical coincidence | ✔ |
| Polarising red-green | ✔ |
| 3D images | ✔ |
| SPECIAL TESTS | |
| Contrast sensitivity | ✔ |
| Colour vision test | ✔ |
| Colour sensitivity | ✔ |
| Animations | ✔ |
| MASKS | |
| Single optotype, horizontal/vertical line | ✔ |
| Red-green | ✔ |
| Polarising | ✔ |
| DIMENSIONS | |
| Dimensions (W×D×H, incl. frame) | 583 × 55 × 423 mm |
| Weight | 5.7 kg |
| Input | AC 100 V / 240 V |
| Frequency | 50/60 Hz |
| Power consumption | 35 – 45 VA |
