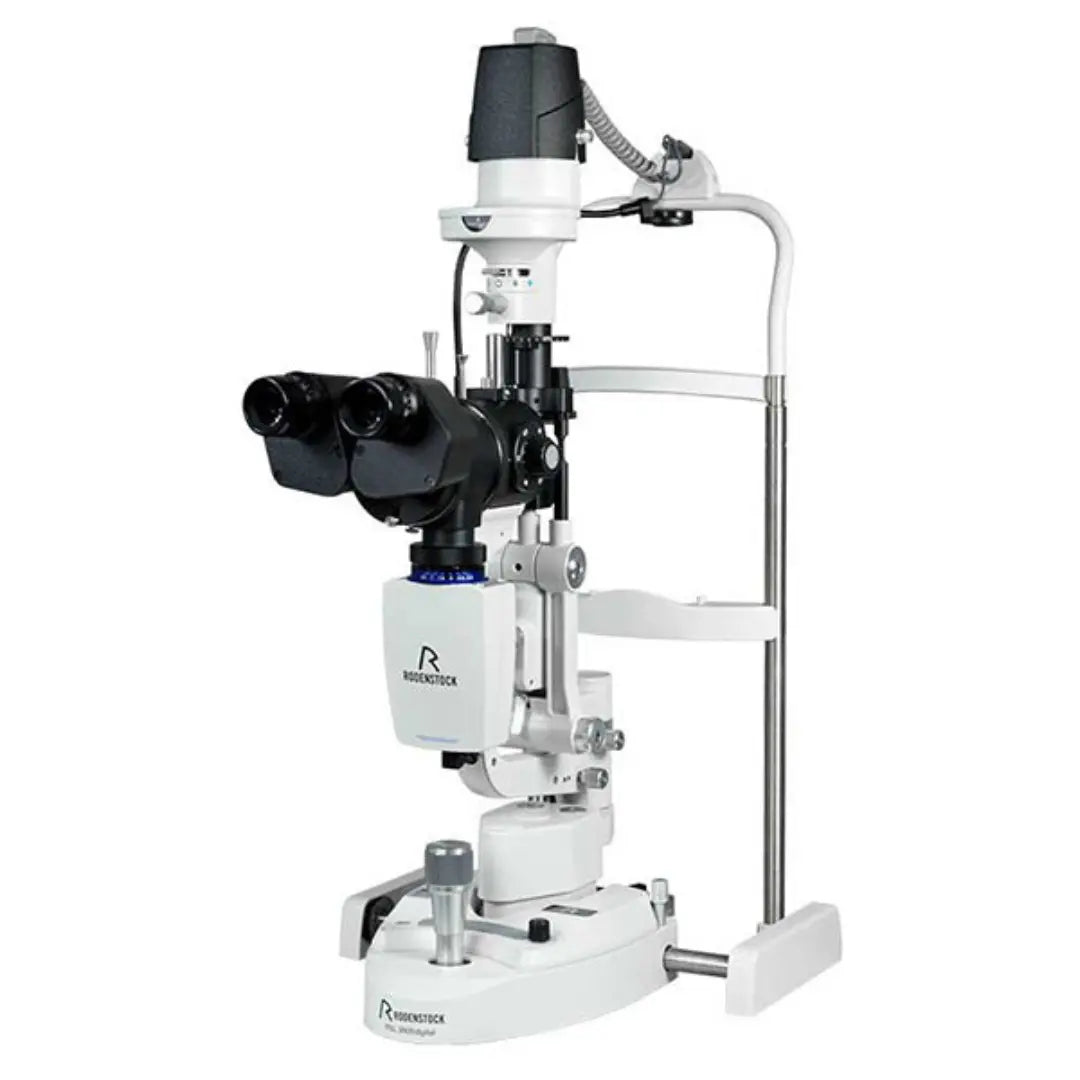

Rodenstock RSL 2600 – HS-type Slit Lamp
Crystal-clear imaging, robust mechanics and upgradeable digital workflow.
The RSL 2600 combines a long-life high-intensity LED illumination system with a premium 5-step Galilean optical system to deliver razor-sharp views of the anterior segment. A full filter set (including built-in yellow filter) and fine, silky mechanics make everyday examinations fast and dependable. When you’re ready to document and educate, the RSL 2600 is prepared for digital imaging with Rodenstock’s camera solution.
Key Benefits
- HD optical performance – 5-step drum magnification (6×/10×/16×/25×/40×) with resolution up to 200 lp/mm for crisp detail.
- Bright, natural LED light – long-life, high-intensity white LED with natural colour temperature and red LED fixation; inclinable illumination on the RSL 2600.
- Complete filter set – built-in yellow, red-free, neutral density, cobalt blue, heat-absorbing filter and diffuser for every clinical scenario.
- Ergonomic, precise mechanics – smooth base movements, 12 mm fine horizontal adjustment and 0–180° slit rotation with selectable inclination.
- Digital-ready – available as RSL 2600digital or upgrade later with the Rodenstock Digital Imaging Kit (camera, software, background illumination module, HDMI out).
Specifications
| OPTICAL SYSTEM | |
| Type | Galilean converging binoculars 10° |
| Magnification | 5-step drum change: 6×, 10×, 16×, 25×, 40× |
| Eyepiece | 12.5×, dioptre adjustment −8 to +8 D |
| Field of view | 36.2, 22.3, 14.8, 9.57 mm (per step) |
| Interpupillary distance | 52–80 mm |
| Resolution | Up to 200 lp/mm |
| SLIT PROJECTION & BASE | |
| Slit width / length | 0–14 mm continuously variable / 1–14 mm continuously variable |
| Aperture diameters | 0.2, 1, 2, 3, 5, 10, 14 mm |
| Filters | Yellow, red-free, neutral density, cobalt blue, IR heat-absorbing filter, diffuser |
| Slit angle / inclination | 0° to 180° / 5°, 10°, 15°, 20° |
| Base travel (X / Y / Z) | 115 mm / 110 mm / 30 mm |
| Chin-rest vertical movement | 80 mm |
| Horizontal fine adjustment | 12 mm |
| Fixation lamp / Light source | Red LED / White LED |
| Luminance | ≥150 kLx |
| DIMENSIONS & ELECTRICAL REQUIREMENTS | |
| Dimensions (W × D × H) | 330 × 390–460 × 650 mm |
| Weight | Approx. 17 kg |
| Power supply (input / output) | 100–240 V AC, 50/60 Hz / 12–15 V DC |
| DIGITAL IMAGING KIT (RSL 2600digital or RSL 2100 + Upgrade) | |
| Resolution / Sensor | 5 MP (2592 × 1944), 1/1.8″ chip |
| Connectivity | USB 3.0, HDMI output for external monitor |
| Formats | Photo: JPEG | Video: MP4 H.264 | 25 fps |
| Software highlights | Patient management, meibomian gland observation (with IR), brightness/contrast tools, zoom, comparison and follow-up, fluorescein fitting assistance, report printing. |
