Descripción

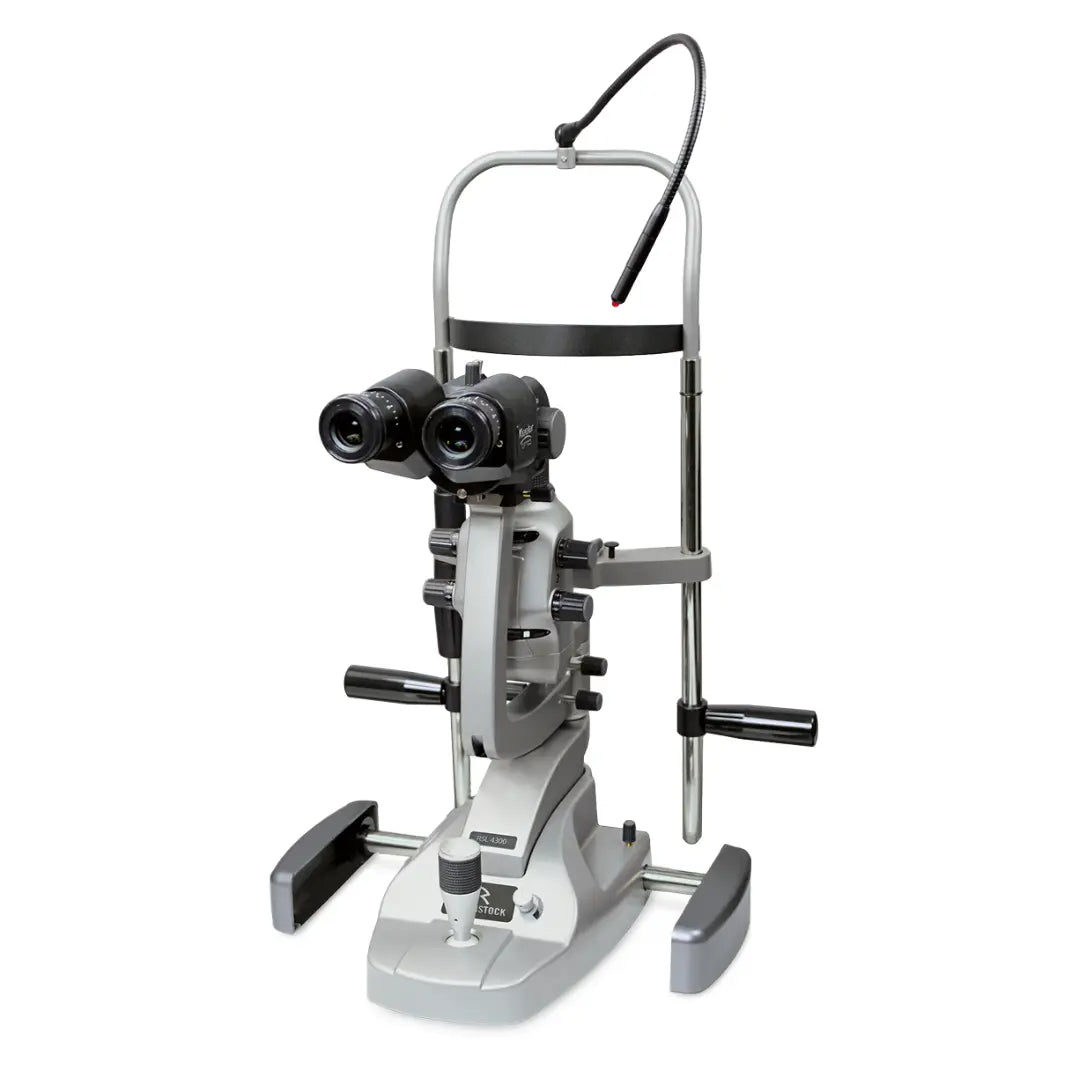

Rodenstock RSL 4500 – Slit Lamp (5-Step Magnification)
Exceptional optics. Outstanding reliability.
The RSL 4500 is a premium slit lamp designed to deliver high diagnostic precision with ergonomic handling and long-lasting LED illumination. Combining Rodenstock’s tradition of optical excellence with modern design, it ensures reliable performance for daily clinical use.
Key Features
Exceptional Optics + LED
- High-quality optics for sharp, detailed imaging.
- LED illumination with natural color temperature and homogeneous lighting.
- Energy-efficient light source with long lifespan.
5-Step Magnification
- Magnification levels: 6x, 10x, 16x, 25x, 40x.
- Provides crystal-clear images for examining every ocular detail.
Ergonomic Operation
- Smooth joystick control for comfortable handling.
- Well-placed illumination controls for easy adjustments during examinations.
- Robust and precise mechanics ensure consistent reliability.
Fully Equipped
- Integrated yellow filter for enhanced imaging.
- Wide range of accessory and filter options available.
✅ The RSL 4500 (5-step) delivers a perfect balance of precision optics, ergonomic operation, and modern LED illumination — making it a dependable choice for comprehensive eye examinations.
Specifications
| OPTICAL SYSTEM — RSL 4500 | |
| Type | Parallel binoculars |
| Magnification | Rotating drum change: ×6, ×10, ×16, ×25, ×40 |
| Eyepiece | ×12.5 |
| Field of view | 34, 22, 14, 8.5, 5.5 mm |
| Interpupillary distance | 49 to 77 mm |
| Objective lens focal distance | 107 mm |
| Objective lens convergence angle | 13° |
| SLIT PROJECTION AND BASE | |
| Slit width | 0–14 mm continuously variable |
| Slit length | 14 mm (0–14 mm continuously variable) |
| Aperture diameters | 0.2, 1 mm square, 2, 3, 5, 9, 14 mm |
| Filters | Clear, red-free, neutral density, diffuser, blue, IR heat absorbing filter permanently installed |
| Slit angle | ±90° continuous |
| Slit rotation | ±90° with reference scale |
| Base travel | 25 mm Z-axis, 107 mm X-axis, 110 mm Y-axis |
| Horizontal fine adjustment | 12 mm |
| Fixation lamp | LED |
| Light source | LED / 12 V |
| ADDITIONAL FEATURES | |
| Auxiliary diffuser | Yellow filter integrated to optical body |
| Options | TAT-100R optional available |
| DIMENSIONS AND WEIGHT | |
| Dimensions (W×D×H) | 350 × 432 × 604 mm |
| Weight | ≈19 kg |
| POWER SUPPLY | |
| Power supply unit | Switch mode (100–240 V input) ±10%, multi plug compliant to EN 60601-1, EN 61000-6-2, EN 61000-6-3 |
| Power supply output | 12 V DC / 2.5 A IEC / EN 60 601 |
