Descripción

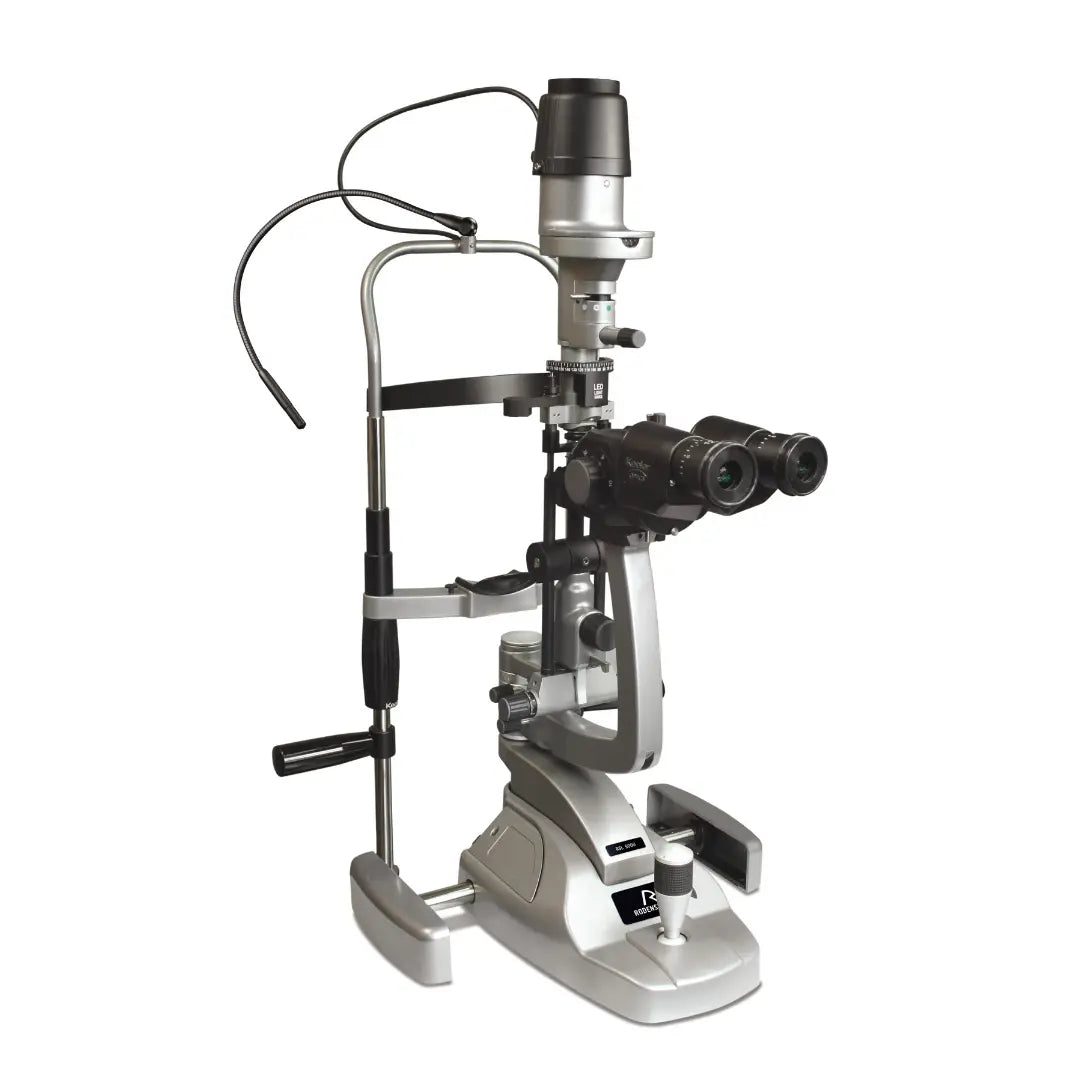

Rodenstock RSL 5000 – Slit Lamp Haag-Streit Type
Exceptional optics. Outstanding reliability.
The RSL 5000 combines Rodenstock’s world-class optical quality with advanced ergonomics and long-lasting LED illumination. Designed for modern ophthalmic examinations, this slit lamp ensures precise diagnostics, smooth operation, and robust reliability in daily practice.
Key Features

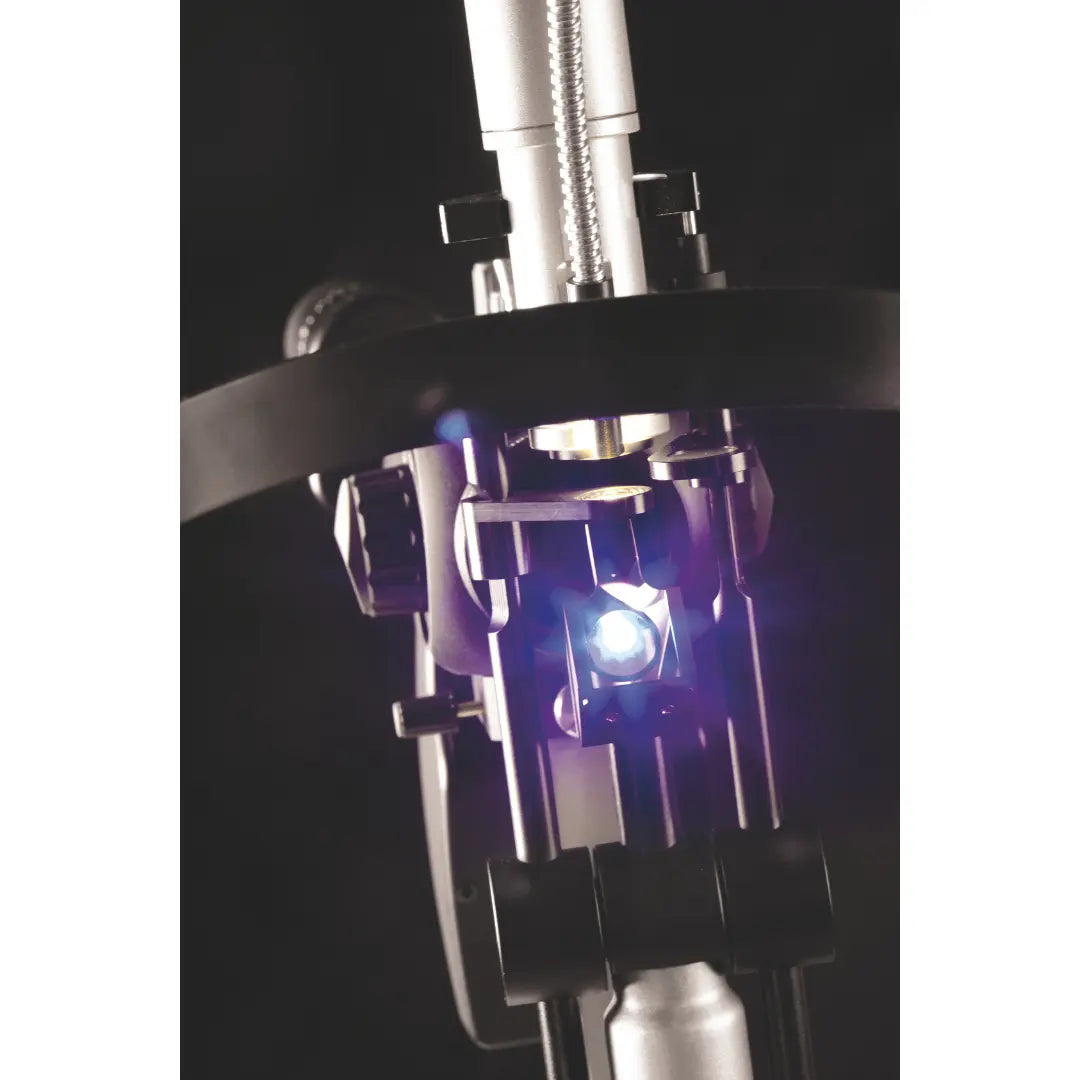

Exceptional Optics + LED
- High-quality optical system providing sharp, high-resolution images.
- LED illumination with ideal color temperature and uniform light distribution.
- Energy-efficient and long-lasting light source.

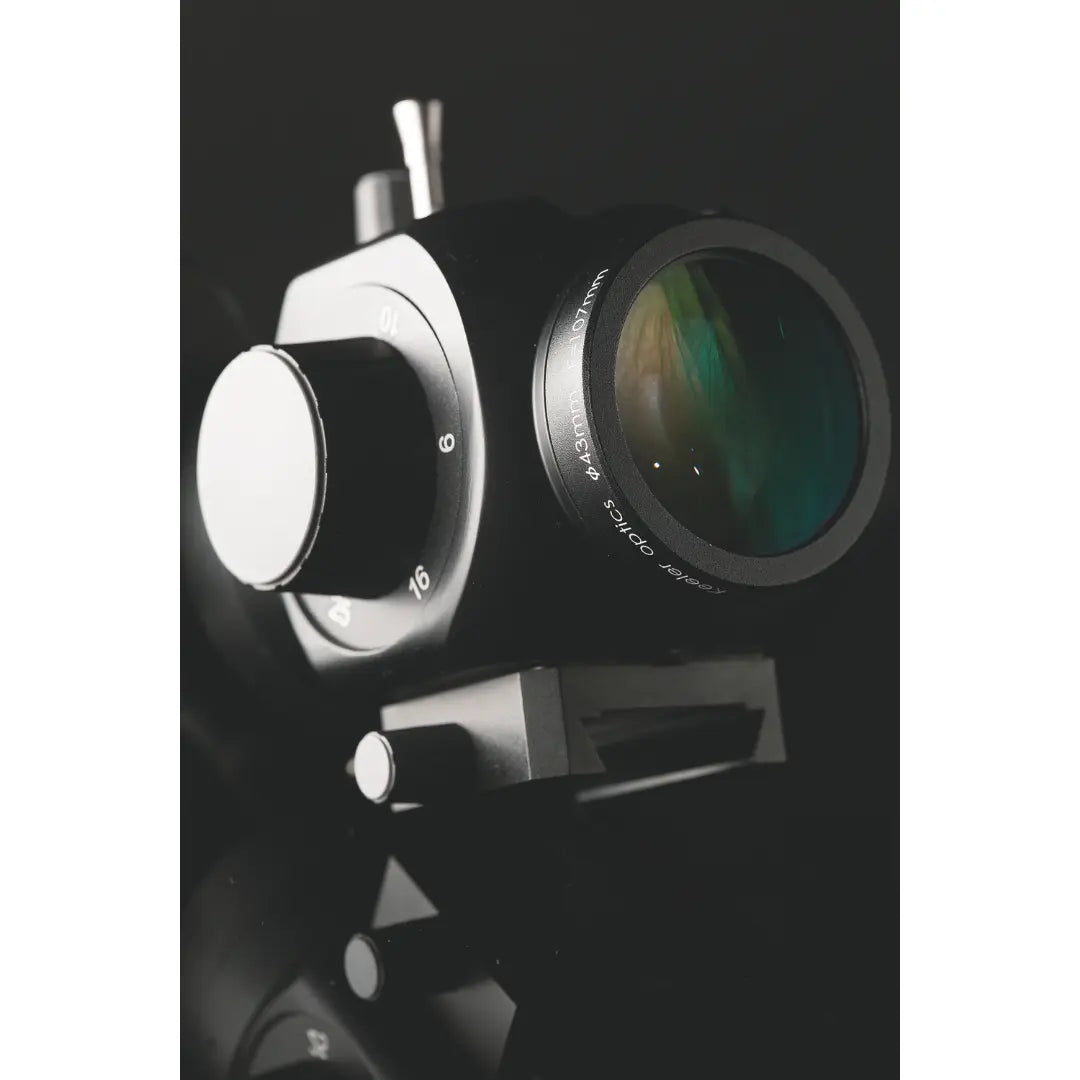

5-Step Magnification
- Magnification levels: 6x, 10x, 16x, 25x, and 40x.
- Enables detailed examination of cornea, lens, retina, and anterior structures.

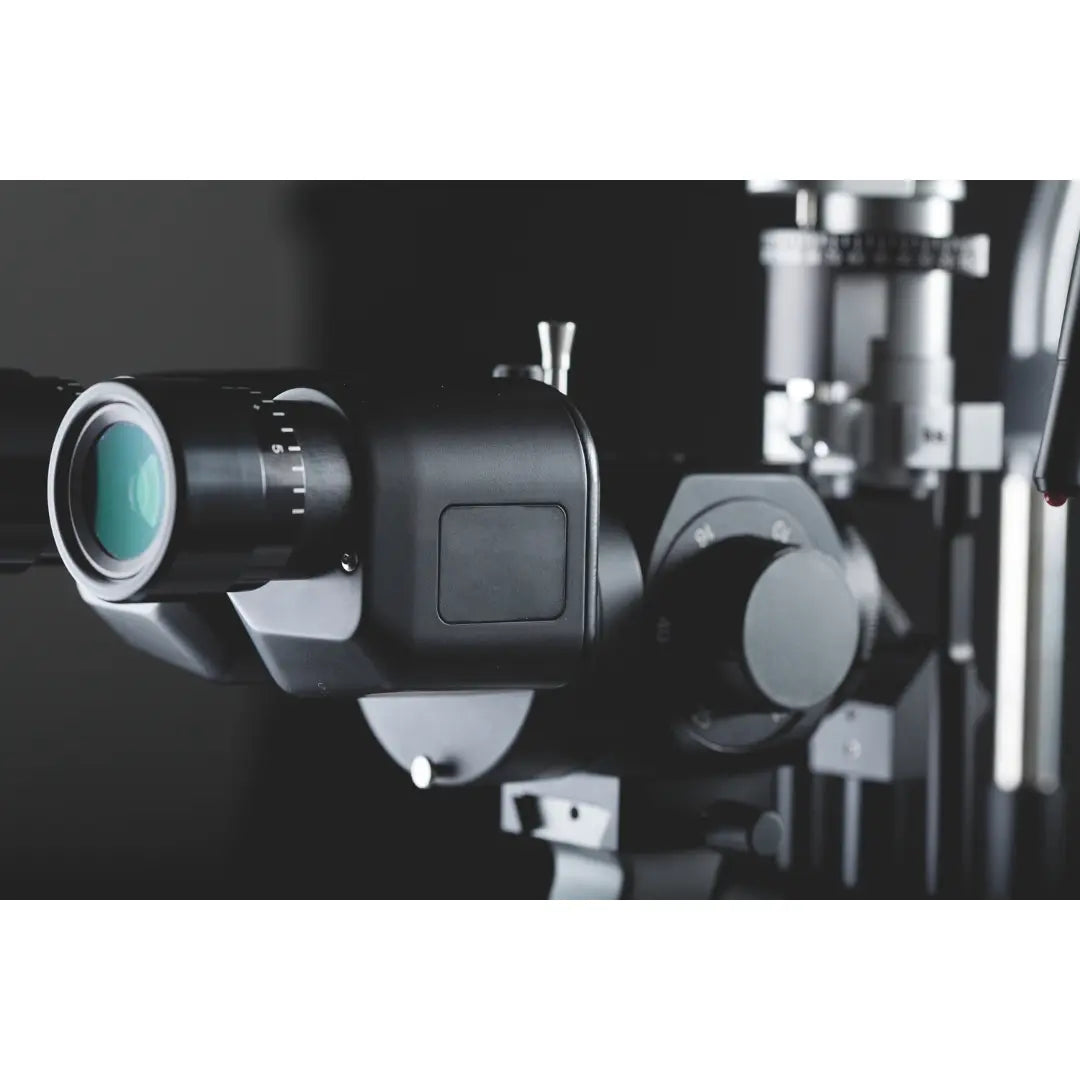

Ergonomic Control
- Conveniently placed illumination control for intuitive operation.
- Smooth handling and high-precision mechanical components.
- Designed for fatigue-free use during long clinical sessions.
Digital Upgrade Option
- Can be upgraded to the RSL 5000digital version.
- Integration of a high-resolution digital camera system with beam splitter.
- Includes background illumination, diffuser, and blue filter.
- Compatible with Kapture software for patient data management, image comparison, and real-time video analysis.
✅ The RSL 5000 is the perfect choice for professionals seeking a Haag-Streit type slit lamp with outstanding optics, ergonomic design, and the option of advanced digital integration for complete diagnostic versatility.
Specifications
| OPTICAL SYSTEM — RSL 5000 | |

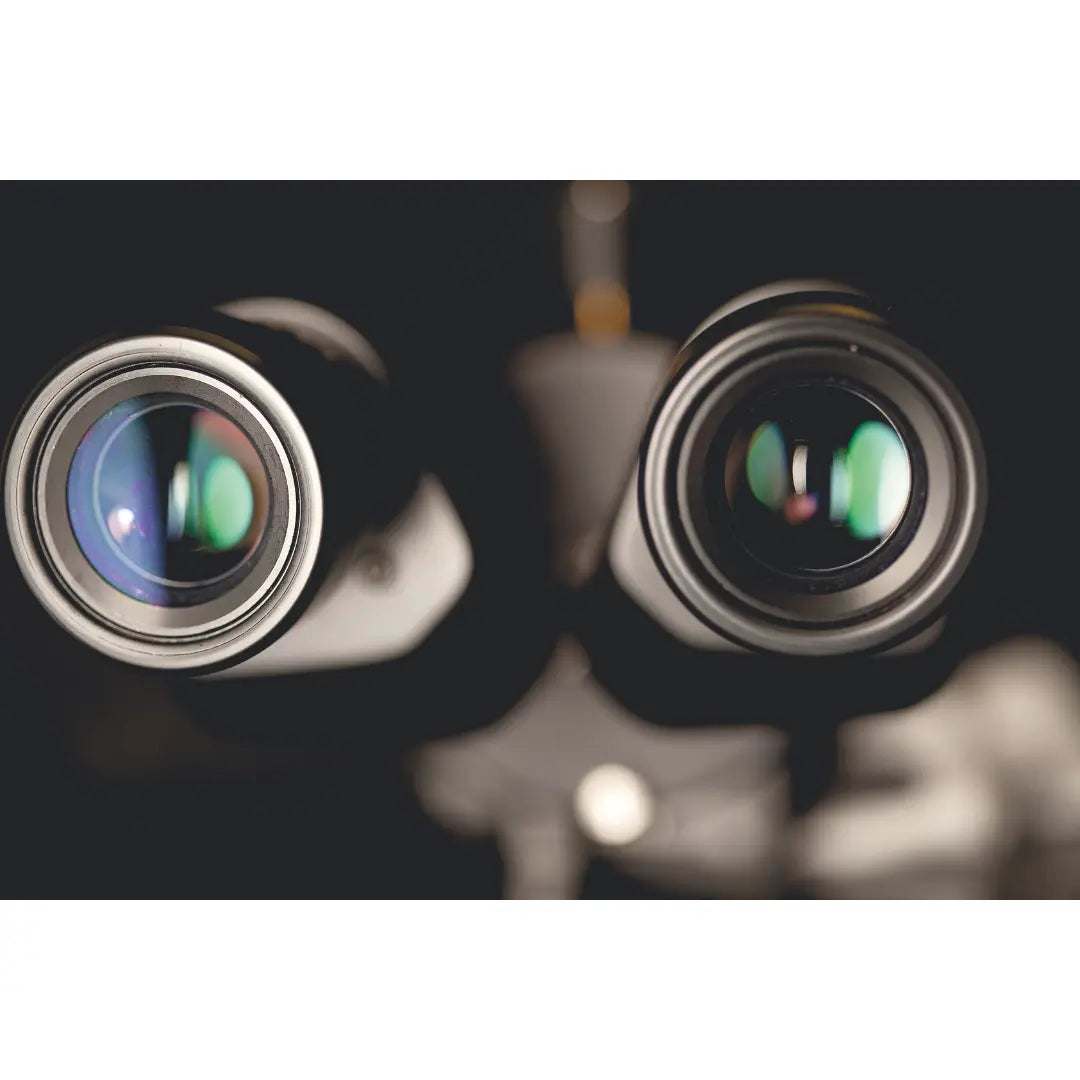

| Type | Galilean converging binoculars 8° |
| Eyepiece | ×12.5 |
| Magnification | Rotating drum change ×6, ×10, ×16, ×25, ×40 |
| Field of view | 34, 22, 14, 8.5, 5.5 mm |
| Interpupillary distance | 49 to 77 mm |
| Objective lens focal distance | 107 mm |
| Objective lens convergence angle | 13° |
| SLIT PROJECTION AND BASE | |
| Slit width | 0–12 mm continuously adjustable |
| Slit length | 1–12 mm continuously adjustable |
| Aperture diameters | 0.2, 2, 3, 5, 9, 12 mm circle, 1 mm square |
| Filters | Yellow, clear, red-free, neutral density, diffuser, blue, IR heat-absorbing filter |
| Slit angle | ±90° continuous |
| Slit rotation | ±180° with reference scale |
| Base travel | 25 mm Z-axis, 107 mm X-axis, 110 mm Y-axis |
| Horizontal fine adjustment | 12 mm |
| Fixation lamp | Red LED |
| Light source | White LED |
| DIMENSIONS AND WEIGHT | |
| Dimensions (W×D×H) | 350 × 410 × 702 mm |
| Weight | 21 kg |
| POWER SUPPLY | |
| Power supply unit | Switching power supply, 100–240 V input, complies with EN 60 6001 |
| Power supply output | 12 V DC / 2.5 A IEC / EN 60 6001 |
