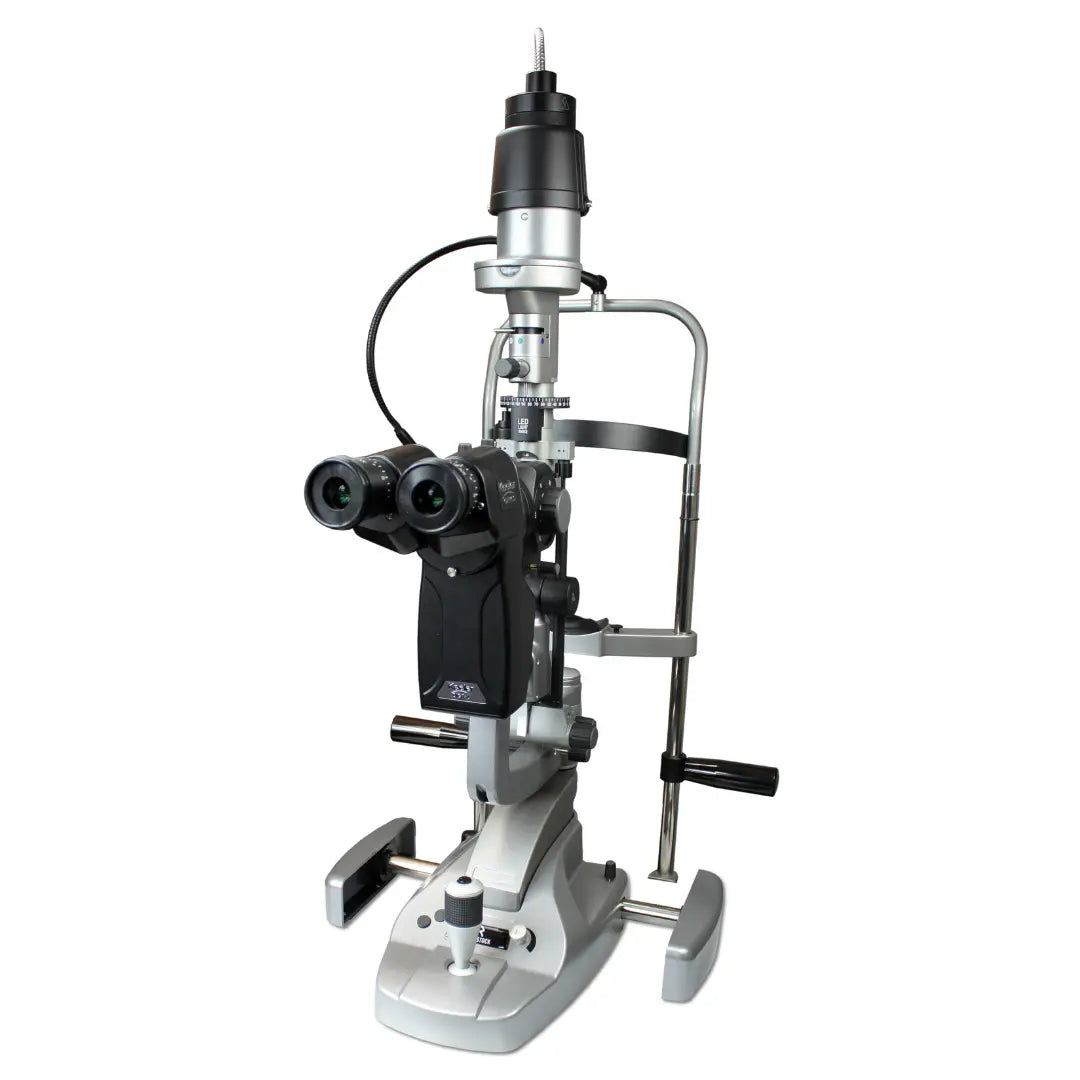

Rodenstock RSL 5000 digital – Slit Lamp
Exceptional optics. Outstanding reliability.
The RSL 5000digital combines Rodenstock’s renowned optical quality with an integrated high-end digital imaging system. Designed for a modern workflow, this slit lamp offers long-lasting LED illumination, advanced ergonomics, and powerful image acquisition and patient management functions.
Key Features
Exceptional Optics + LED
- High-quality optical system for crystal-clear, high-resolution images.
- LED illumination with ideal color temperature and uniform light distribution.
- Energy-efficient, durable light source ensuring consistent performance.
5-Step Magnification
- Magnification levels: 6x, 10x, 16x, 25x, 40x.
- Enables precise examination of cornea, crystalline lens, retina, and anterior structures.
Digital Imaging System
- Integrated high-resolution digital camera with beam splitter.
- Additional features: background illumination, diffuser, and blue filter.

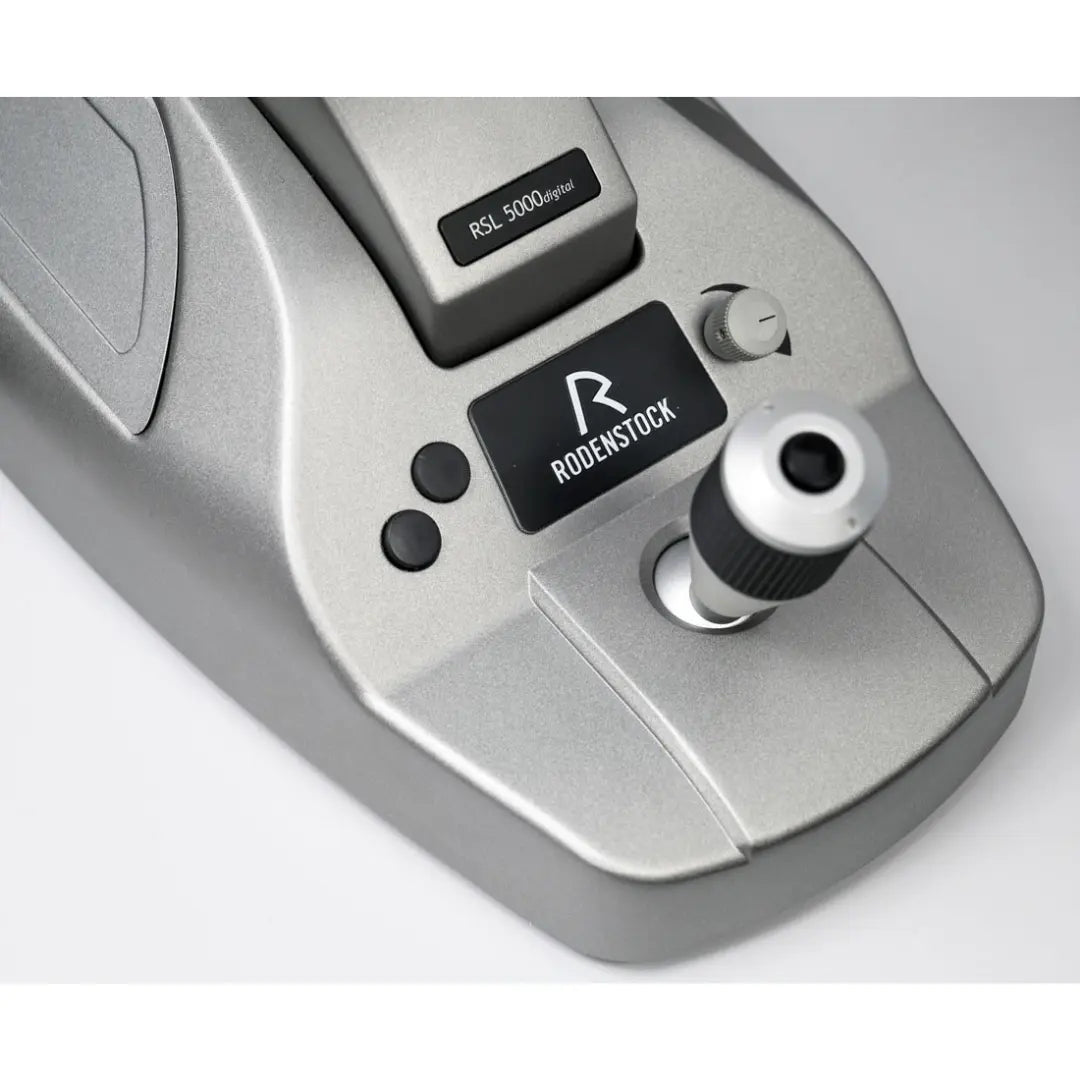

- Easy image acquisition and video recording with joystick capture button.
- Freeze-frame function to select the best shot.
- Auto left/right detection and exposure control.
- Real-time images and video for detailed clinical analysis.
Patient Management + Software
- Fully compatible with Kapture software for integrated patient database.
- Store, manage, and compare multiple images.
- Edit, analyze, and generate professional reports with ease.
✅ The RSL 5000digital is the ultimate solution for eye-care professionals seeking a Haag-Streit type slit lamp with advanced digital integration, ensuring reliable diagnostics, smooth workflow, and superior patient care.
Specifications
| OPTICAL SYSTEM — RSL 5000digital | |
| Type | Galilean converging binoculars 8° |
| Eyepiece | ×12.5 |
| Magnification | Rotating drum change ×6, ×10, ×16, ×25, ×40 |
| Field of view | 34, 22, 14, 8.5, 5.5 mm |
| Interpupillary distance | 49 to 77 mm |
| Objective lens focal distance | 107 mm |
| Objective lens convergence angle | 13° |

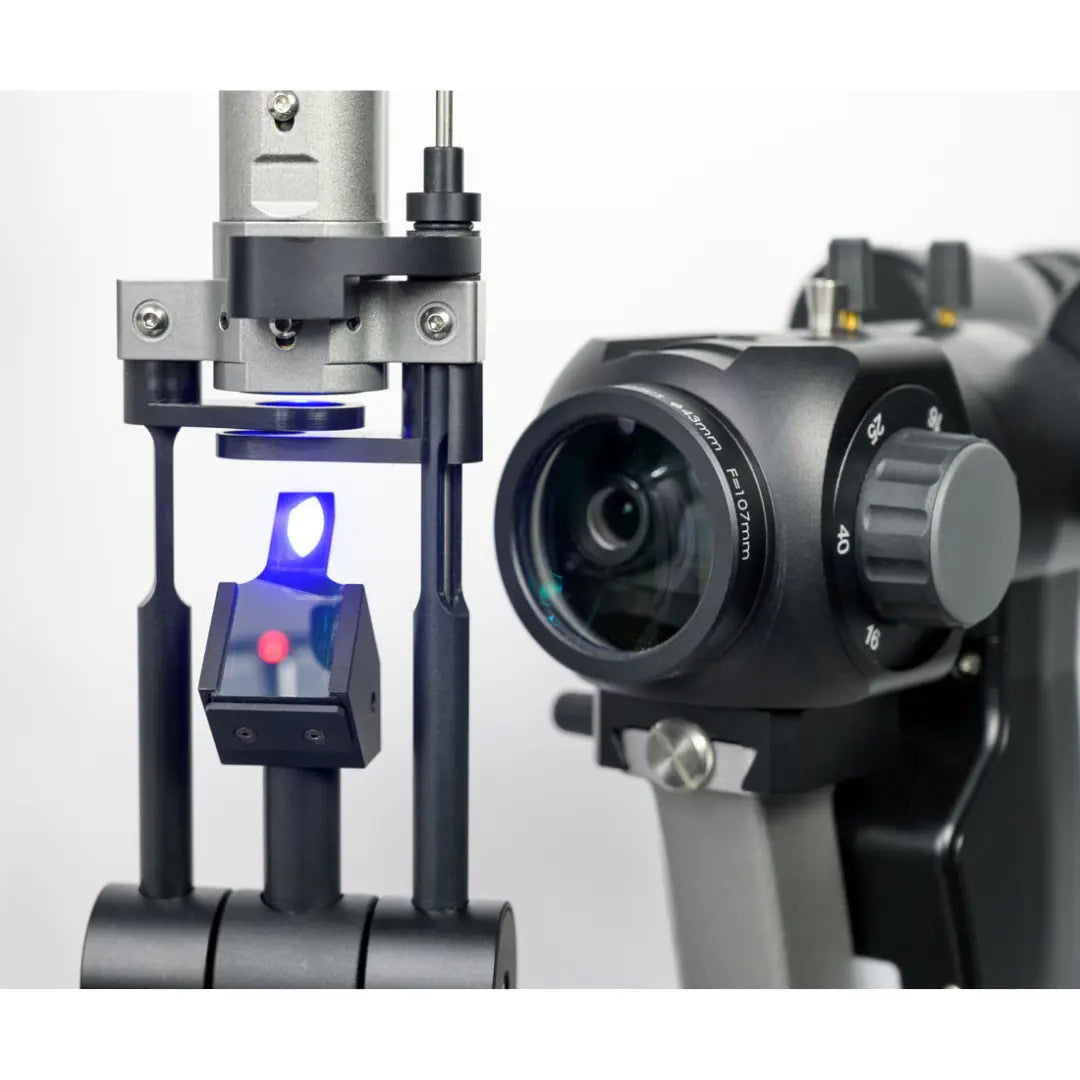

| SLIT PROJECTION AND BASE | |
| Slit width | 0–12 mm continuously adjustable |
| Slit length | 1–12 mm continuously adjustable |
| Aperture diameters | 0.2, 2, 3, 5, 9, 12 mm circle, (1–12 mm continuously variable), 1 mm square |
| Filters | Yellow, clear, red-free, neutral density, diffuser, blue, IR heat-absorbing filter |
| Slit angle | ±90° continuous |
| Slit rotation | ±180° with reference scale |
| Base travel | 25 mm Z-axis, 107 mm X-axis, 110 mm Y-axis |
| Horizontal fine adjustment | 12 mm |
| Fixation lamp | Red LED |
| Light source | White LED |
| DIMENSIONS AND WEIGHT | |
| Dimensions (W×D×H) | 350 × 410 × 702 mm |
| Weight | 21 kg |
| POWER SUPPLY | |
| Power supply unit | Switching power supply, 100–240 V input, complies with EN 60 6001 |
| Power supply output | 12 V DC / 2.5 A IEC / EN 60 6001 |
| CAMERA SYSTEM — RSL 5000digital | |
| Resolution | 3 MP / 2048 × 1536 |
| Connectivity | USB 3.0 |
| Sensor type | CMOS |
| Chip size | 1/1.8″ |
| Framerate | Up to 57 fps |
