570-914 | CX 800 Auto Refractometer / Keratometer

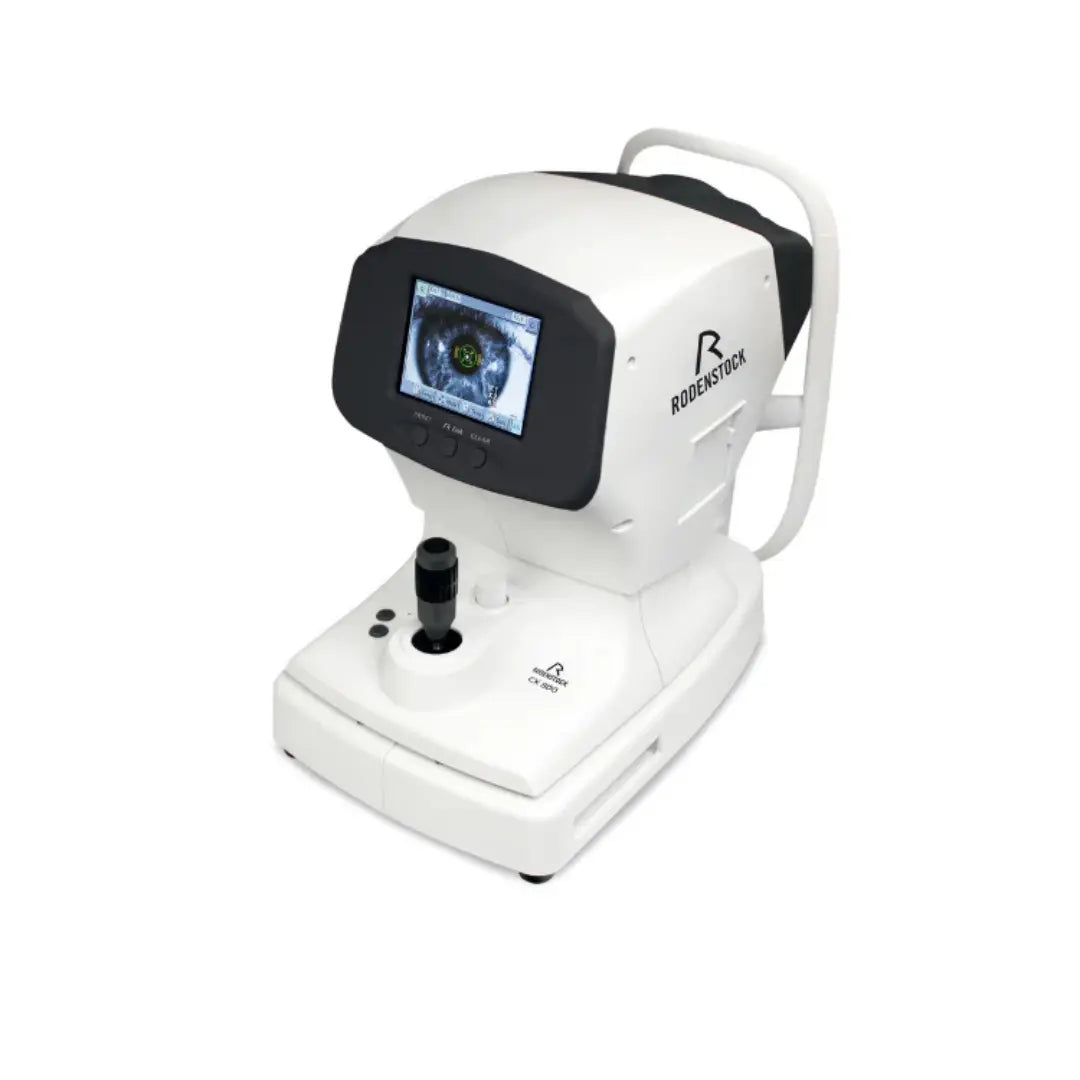

CX 800 Auto Refractometer / Keratometer

Extremely fast operation
Pupil + cornea √∏ measurement
Colour touch screen
Auto measurement
Central K-values

The Rodenstock Refractor-Keratometers are an integral part of modern eye diagnostic. Highly accurate measurements combined with the very short examination time and easy handling makes working with the Rodenstock CX 800 professional and quick. You can operate and align the CX 800 through the combination of joystick and touch screen – all this in a very short time.

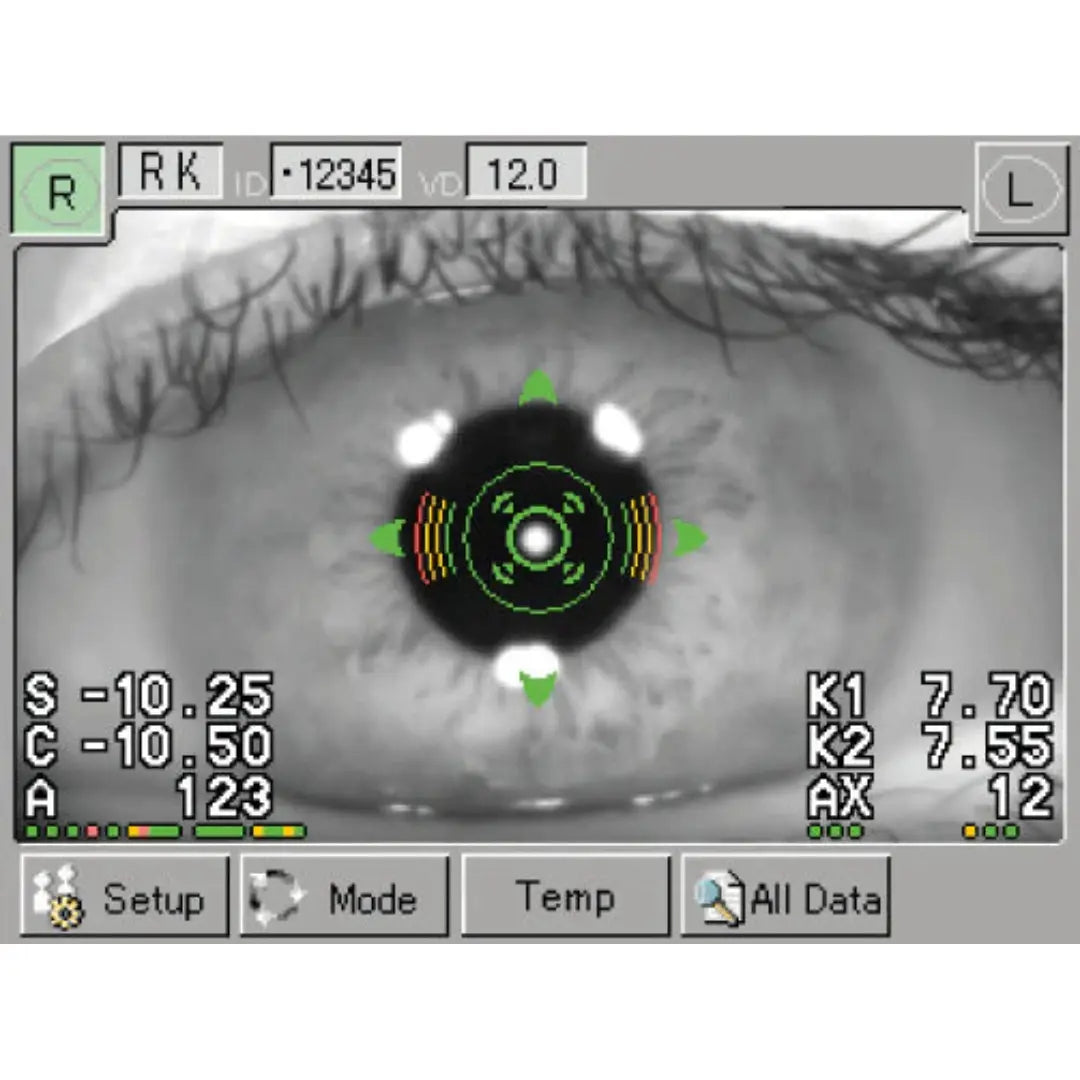

Colour touch screen
The 5.7“ colour touch screen is used as operating monitor as
well as for displaying all measured values. All commands can be
done via touch screen.

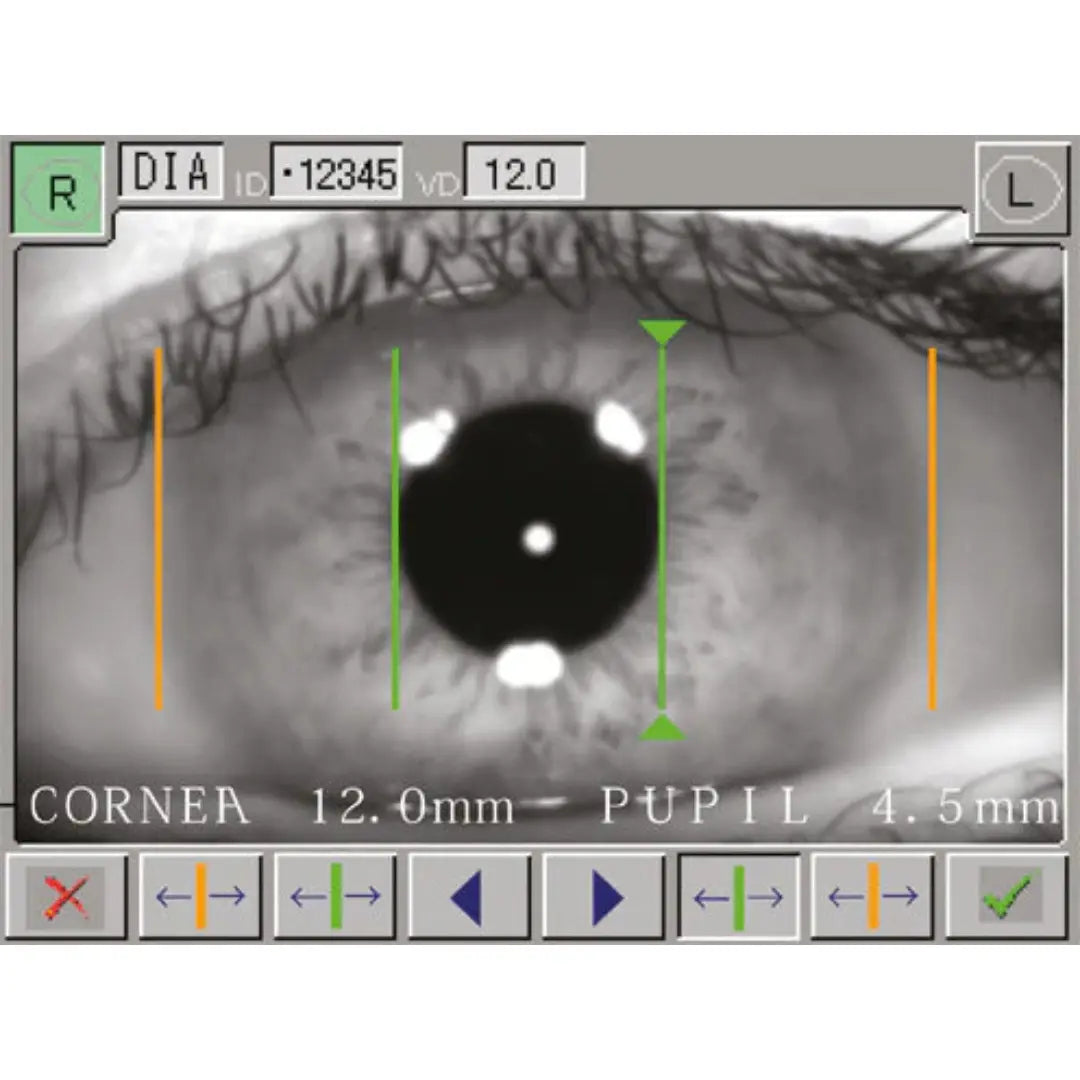

Pupil + cornea √∏ measurement
Once you have captured your patients’ eye, you can set the pupil and cornea measurement bars to individual diameters. These
values will also be stored, displayed and printed.

Auto measurement
The handling of the CX 800 is very easy. By aligning the optical
head towards the patients’ eye, the measurement is automatically taken over by the instrument itself.

Central K-values
The CX 800 provides you with the measured central (√∏ 3 mm)
Keratometer readings within a second. You can take these readings from a cornea or the back surfaces of a RGP contact lens.

SPECIFICATIONS
Rrefractive power measurement
Spherical refractive power (S)
Measurement range .............. -25.00 D to +22.00 D
(at VD = 12.0 mm)
Display unit ........................... 0.01 D / 0.12 D / 0.25 D
Cylindrical refractive power (C)
Measurement range .............. 0 D to ±10.00 D
(at VD = 12.0 mm)
Display unit ........................... 0.01 D / 0.12 D / 0.25 D
Astigmatism axial (A)
Measurement range .............. 0° to 180°
Display unit ........................... 1°
Corneal curvature measurement (K1, K2, AVG)
Measurement range .............. 5.00 mm to 11.00 mm / 30.68 D
to 67.50 D (n=1.3375)
Display unit ........................... 0.01 mm
Corneal astigmatism and axis (C, A)
Measurement range (C) ........ 0 D to 10 D (n=1.3375)
Measurement range (A) ........ 0° to 180°
Measurement area cornea .... √ò 3.0 mm
(at 8.00 mm corneal curvature)
PD range ............................... 50 mm to 86 mm
Minimum pupil diameter ....... √ò 2.0 mm
Vertex distance ..................... 0 mm - 16.0 mm
Main unit
Built-in printer ....................... Thermal printer
Output .................................. RS 232 C
Display .................................. 5.7“ colour LCD display
Chin rest ................................ electr. controlled
Dimensions & electric Requirements
Dimensions WDH .................. 297 x 500 x 448 mm
Weight ................................. Approx. 17.0 kg
Voltage ................................. 100 VAC to 240 VAC
Frequency ............................. 50/60 Hz
Power consumption .............. 80 VA to 100 VA
