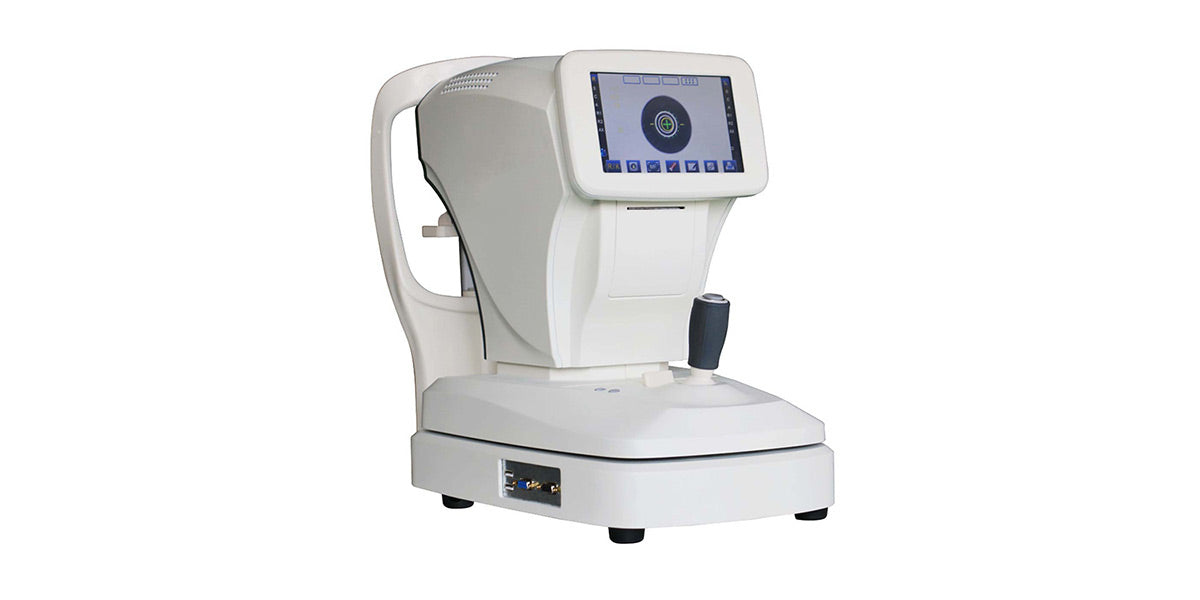

INS-11006 | Auto Refractometer / Keratometer ARK9600
Color: Default Title
SKU: INS-11006
INS-11006 | Auto Refractometer / Keratometer ARK9600
The INS-11006 ARK 9600 Auto Kerato-Refractometer combines advanced Hartmann wavefront technology with fast, precise refractive and keratometric measurements. Designed to improve efficiency in busy eye-care practices, it features manual and automatic measurement modes, a motorized chinrest, pediatric measurement capabilities, and an intuitive 7-inch touchscreen interface.
Outstanding Features
Advanced Hartmann Wavefront Technology
The ARK 9600 uses a latest-generation Hartmann image analysis and processing system to provide high-quality imaging and precise, repeatable measurements.
Fast and Accurate Measurements
With a measurement time of less than 0.5 seconds, the ARK 9600 helps streamline examinations and improve patient throughput without compromising measurement quality.
Automatic and Manual Measurement Modes
The instrument supports both automatic and manual measurement modes. A precision joystick with an integrated measurement capture button allows the operator to make fine adjustments during manual examinations.
Refractive and Keratometric Measurements
The ARK 9600 provides a wide refractive measurement range and detailed corneal readings, including corneal curvature radius, corneal astigmatism, and corneal power.
Pediatric Measurement Mode
A dedicated pediatric measurement mode and the ability to measure pupils as small as 2.0 mm make the device suitable for examining a wide range of patients.
7-Inch Adjustable Touchscreen
The adjustable-angle 7-inch LCD touchscreen provides a clear view of measurement data and an intuitive operating interface. On-screen targeting, focusing guides, and measurement error indicators simplify instrument alignment.
Motorized Focusing and Chinrest
The system combines manual horizontal tracking with automatic motorized vertical focusing. Its motorized chinrest allows convenient patient positioning and improves comfort during examinations.
Integrated Printer and Connectivity
A built-in 57 mm thermal printer provides immediate results. USB and RS-232 ports allow the instrument to connect with compatible equipment and transfer measurement data.
✅ The Opti+ INS-11006 ARK 9600 delivers fast and precise refractive and keratometric measurements through advanced Hartmann technology, intuitive operation, and patient-friendly automated features.
Technical Specifications
| GENERAL FEATURES | |
| Measurement System | Latest-generation Hartmann image analyzer and processor |
| Measurement Modes | Automatic and manual |
| Measurement Time | Less than 0.5 seconds |
| Display | 7-inch adjustable-angle LCD touchscreen |
| Patient Positioning | Motorized chinrest |
| Focusing System | Manual horizontal tracking with automatic motorized vertical focusing |
| Special Measurement Mode | Pediatric mode |
| Printer | Built-in 57 mm thermal printer |
| Connectivity | USB and RS-232 |
| REFRACTIVE MEASUREMENT | |
| Vertex Distance (VD) | 0.0, 12.0, 13.75, and 15.0 mm |
| Sphere Range | -30.00 to +25.00 D |
| Cylinder Range | 0.00 to ±10.00 D |
| Axis Range | 1° to 180° |
| Cylinder Format | Minus, plus, and mixed (±) |
| Pupillary Distance (PD) | 10 to 85 mm |
| Minimum Pupil Diameter | 2.0 mm |
| KERATOMETRIC MEASUREMENT | |
| Corneal Curvature Radius | 5.0 to 10.0 mm |
| Corneal Astigmatism | 0.00 to 15.00 D |
| Corneal Power | 33.0 to 67.0 D |
| Corneal Refractive Index | 1.3375 |
| PHYSICAL AND ELECTRICAL DATA | |
| Power Supply | AC 100-240 V, 50/60 Hz |
| Power Consumption | 60 W |
| Dimensions | 750 × 400 × 630 mm (L × W × H) |
| Weight | 17.25 kg |
