INS-11029 | Digital Lensmeter SML-VS

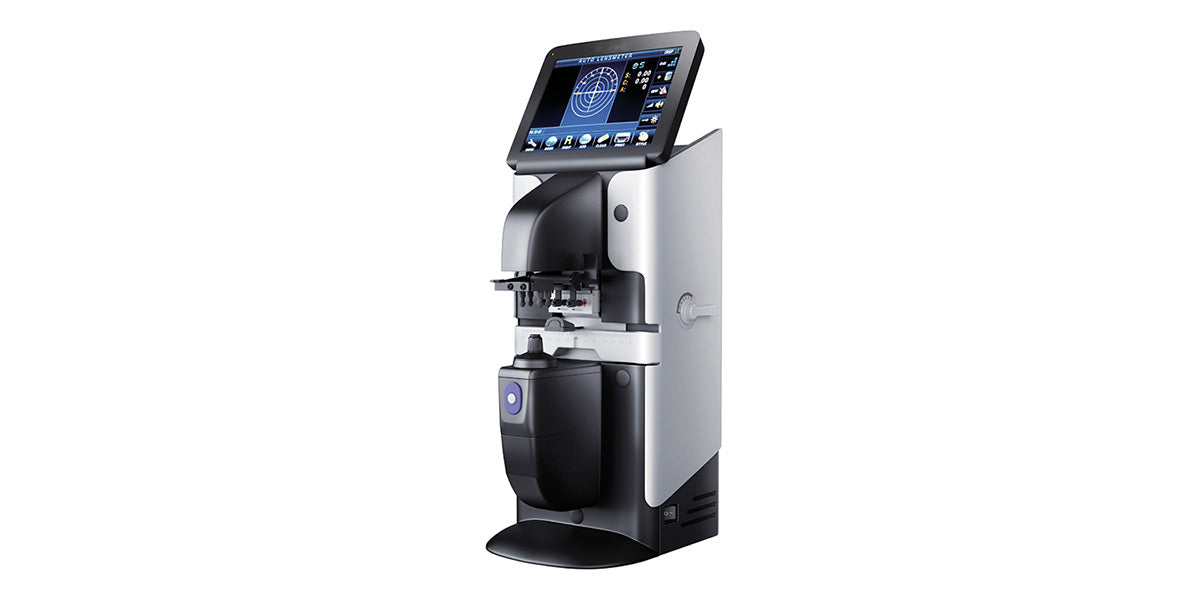

Digital Lensmeter SML-VS model INS-11029.

This auto lensmeter is used for measuring single vison lenses, bifocal(trifocal) lenses, Progressive Power Lenses (PPL) and Contact Lense (CL). The display unit utilizes a full-graphic LCD, displaying measured values of right-eye and left-eye lenses at one time, and graphically showing the alignment condition in the shape of a target. The menu is simple and clear. Icons are conveniently located on the screen, with touch screen, built-in UV tester.

Sphere 0 ~ ±25D 0.01/0.12/0.25D steps

Cylinder 0 ~ ±9.99D 0.01/0.12/0.25D steps

Axis 0 ~ 180º (1º steps)

ADD 0 ~ ±9.99D 0.01/0.12/0.25D steps

Prism Degree 0 ~ 15 0.01/0.12/0.25 steps

Measurement Mode

Cylinder +, +/-, -

Prism: X-Y, P-B

Contact lens: Soft/hard

Measuring Mode Single/progressive/automatic recognition

Others

Diameter of Lens: ? 20~108mm

PD: 40~90mm, 0.5mm steps

Speed of measurement: 0.1s

Display: TFT LCD (5.6”) 640*480

Printer: Thermal Printer

Dimensions: 24 x 13 x 16 in / 61 x 33 x 41 cm

Weight: 21 lb / 9 kg
