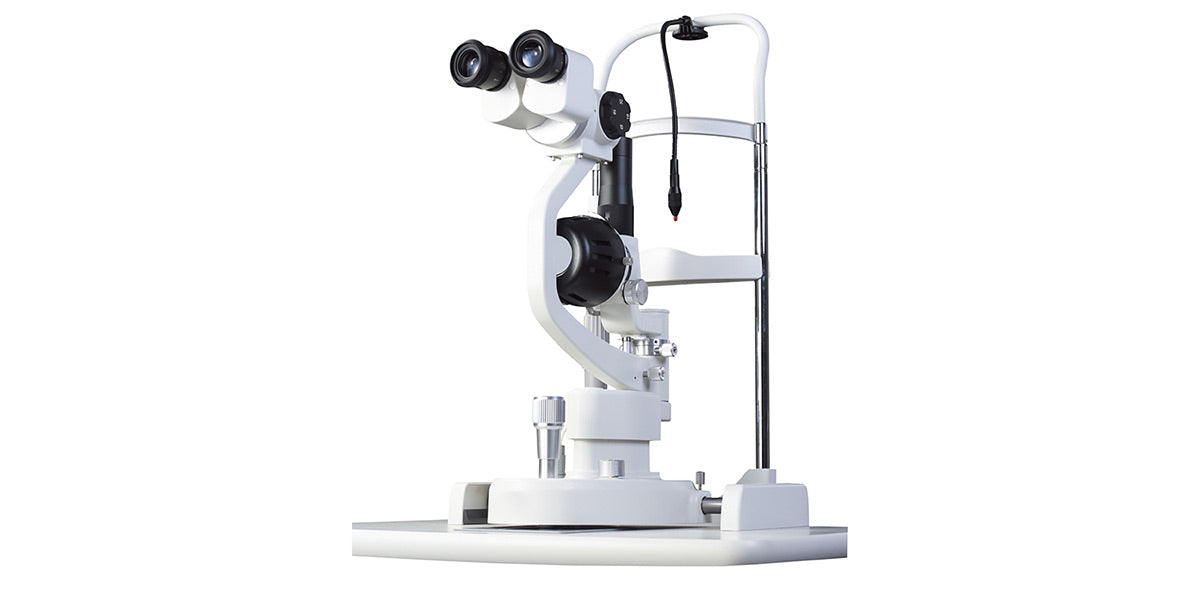

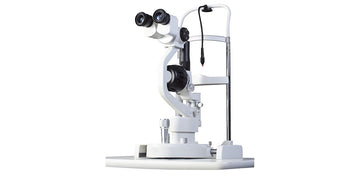

INS-11078 | Opti+ Slit Lamp Zeiss Style 2 Steps Magnifications

Slit Lamp Zeiss Style 2 Steps Magnifications Opti+ model INS-11078

Microscope:

Type: Converging stereoscope

Magnification change: Two steps by objective lens rotation

Total magnification Ratio: 10X, 16X

Eyepieces: 10X

Angle between eyepieces: 13º

Interpupillary adjustment: 52mm~78mm

Diopter adjustment: +5D~-8D

Field of view: 16X (14.5mm), 10X (18mm)

Slit Illumination:

Slit width: Continuously variable from 0 to 14mm (at 14mm,slit becomes a circle )

Slit length: Continuously variable from 1mm to 14mm

Aperture diameters: 14mm, 8mm, 3.5mm, 0.2mm

Slit angle: 0-180

Filters: Heat-absorbing, Red-free, Cobalt Blue

Base Longitudinal movement: 110mm

Lateral movement: 110mm

Fine Base movement: 15mm

Vertical movement: 30mm

Chin-Rest Vertical movement: 80mm

Lamp: 6V/20W

Halogen Lamp Illumination: 50klx

Dimensions: 21 x 15 x 17 in / 53 x 38 x 43 cm

Weight: 31 lb / 14 kg
