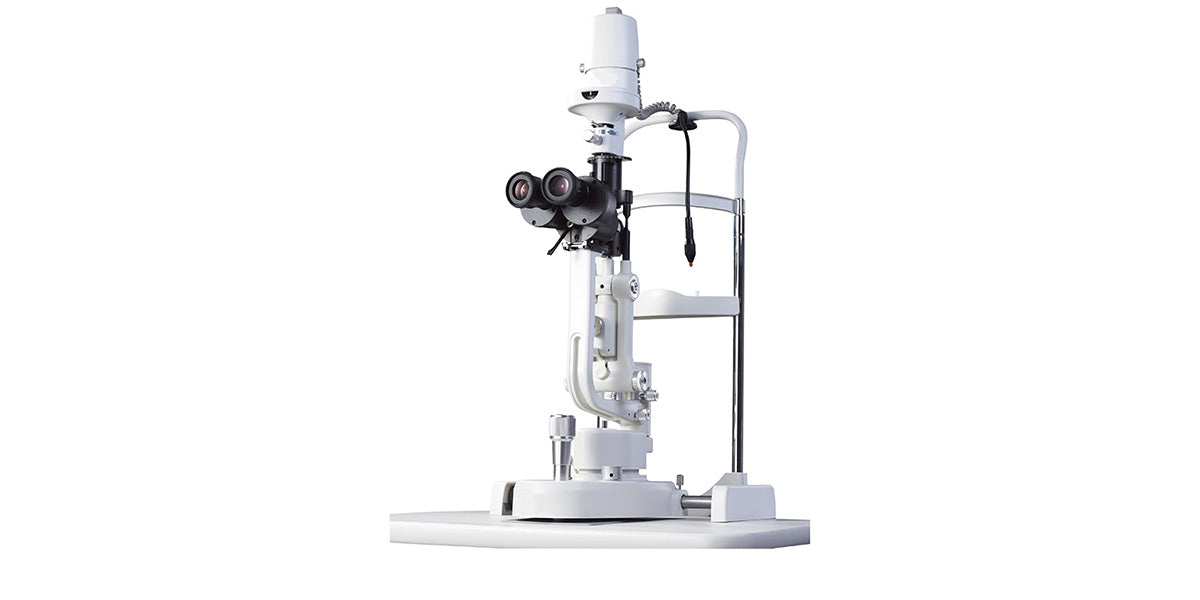

INS-11082 | Slit Lamp Tower Style 2 Steps Magnifications

Slit Lamp Tower Style 2 Steps Magnifications model INS-11082

Microscope:

Type: Converging stereoscope

Magnification change: Two steps by objective lens rotation

Total magnification Ratio: 10X, 16X

Eyepieces: 10X

Angle between eyepieces: 13º

Pupillary adjustment: 52mm~78mm

Diopter adjustment: +5D~-8D

Field of view: 16X (14.5mm), 10X (18mm) Slit width: Continuously variable from 0 to 14mm (at 14mm,slit becomes a circle )

Slit length: Continuously variable from 1mm to 14mm

Aperture diameters: 14mm, 10mm, 5mm, 3mm, 2mm, 1mm, 0.2mm, Slit angle: 0-180

Slit inclination: 4 step: 5, 10, 15, 20

Filters: Heat-absorbing filter, ND filter, Red-free filter, Cobalt Blue filter

Lamp: 6V/20W

Halogen Lamp Illumination: 50klx

Base:

Longitudinal movement: 110mm

Lateral movement: 110mm

Fine Base movement: 15mm

Vertical movement: 30mm

Chin-Rest:

Vertical movement: 80mm

Input voltage: 220V/110V~10%

Dimensions: 30x18x22in

Weight: 35lbs
