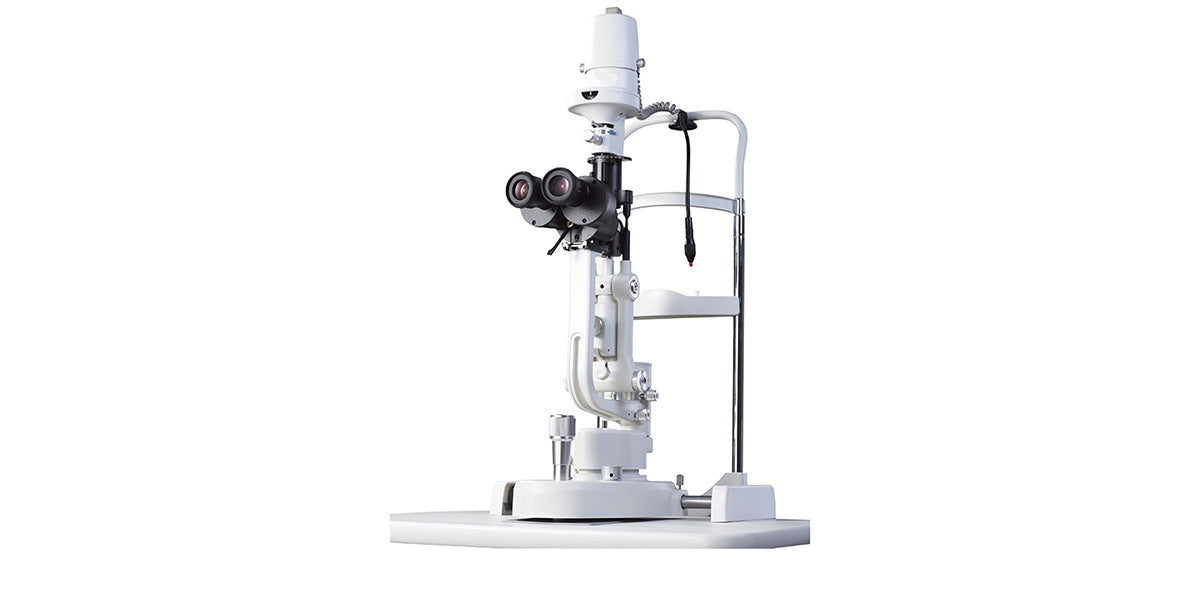

INS-11082 | Slit Lamp Tower Style 2 Steps Magnifications
Color: Default Title
SKU: INS-11082
INS-11082 | Slit Lamp Tower Style 2 Steps Magnifications
The INS-11082 Tower-Style Slit Lamp features a converging stereoscopic microscope with two-step magnification for detailed examination of the anterior segment. Its tower-style illumination system, continuously adjustable slit, multiple apertures, four-step slit inclination, and precision mechanical base provide versatility for routine optometric and ophthalmic examinations.
Outstanding Features
Converging Stereoscopic Microscope
The INS-11082 uses a converging stereoscopic microscope to provide a detailed binocular view of the cornea, anterior chamber, iris, lens, and other visible ocular structures.
Two-Step Magnification
The objective lens rotation system allows the practitioner to switch quickly between 10× and 16× total magnification according to the examination requirements.
Tower-Style Illumination System
The tower-style configuration provides stable slit illumination and convenient positioning during detailed anterior segment examinations.
Continuously Adjustable Slit
The slit width can be continuously adjusted from 0 to 14 mm, while the slit height can be adjusted from 1 to 14 mm. At the maximum width, the slit becomes a circular illumination field.
Adjustable Slit Angle and Inclination
The slit rotates continuously from 0° to 180° and provides four inclination positions of 5°, 10°, 15°, and 20° for different examination techniques.
Multiple Illumination Apertures
Seven aperture diameters ranging from Ø0.2 mm to Ø14 mm allow the practitioner to select the appropriate illumination field for each examination.
Comprehensive Filter Selection
The illumination system includes heat-absorbing, neutral-density, red-free, and cobalt-blue filters for a variety of clinical observation procedures.
Bright Halogen Illumination
The integrated 6 V, 20 W halogen lamp provides an illumination intensity of at least 50 klx for clear visualization of ocular structures.
Precision Mechanical Positioning
The slit lamp provides smooth longitudinal, lateral, fine-base, vertical, and chin-rest movements for accurate alignment of the instrument and patient.
✅ The Opti+ INS-11082 Tower-Style Slit Lamp combines two-step magnification, flexible slit control, multiple apertures, four clinical filters, and precise mechanical positioning for dependable anterior segment examinations.
Technical Specifications
| MICROSCOPE | |
| Microscope Type | Converging stereoscopic microscope |
| Magnification Change | Two steps by objective lens rotation |
| Total Magnification | 10× and 16× |
| Eyepieces | 10× |
| Angle Between Eyepieces | 13° |
| Interpupillary Distance | 52 to 78 mm |
| Diopter Adjustment | +5 D to -8 D |
| Field of View at 10× | Ø18 mm |
| Field of View at 16× | Ø14.5 mm |
| SLIT ILLUMINATION | |
| Slit Width | Continuously variable from 0 to 14 mm; becomes circular at 14 mm |
| Slit Height | Continuously variable from 1 to 14 mm |
| Slit Angle | Continuously variable from 0° to 180° |
| Slit Inclination | Four steps: 5°, 10°, 15°, and 20° |
| Aperture Diameters | Ø14 mm, Ø10 mm, Ø5 mm, Ø3 mm, Ø2 mm, Ø1 mm, and Ø0.2 mm |
| Filters | Heat-absorbing, neutral-density (ND), red-free, and cobalt blue |
| Light Source | 6 V, 20 W halogen lamp |
| Illumination Intensity | ≥50 klx |
| Fixation Target | Red LED |
| BASE AND POSITIONING | |
| Longitudinal Movement | 110 mm |
| Lateral Movement | 110 mm |
| Fine Base Movement | 15 mm |
| Vertical Movement | 30 mm |
| Chin-Rest Vertical Movement | 80 mm |
| ELECTRICAL DATA | |
| Input Voltage | 110/220 V ±10% |
| Frequency | 50/60 Hz |
| Maximum Power Consumption | 30 VA |
| PHYSICAL DATA | |
| Dimensions | 30 × 18 × 22 in |
| Weight | 35 lb |
