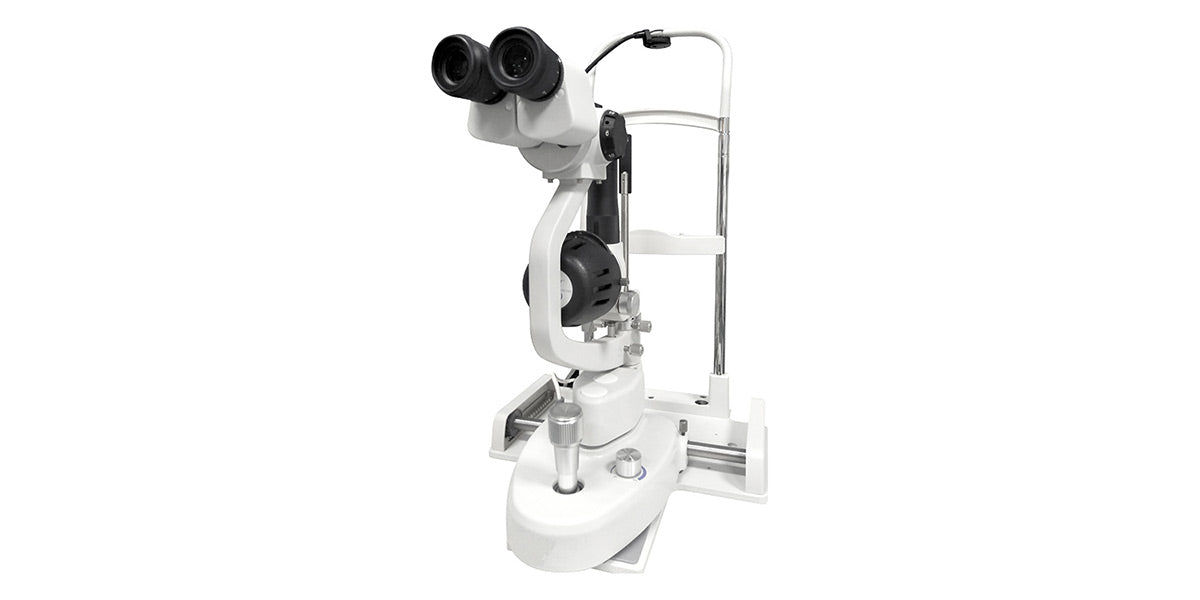

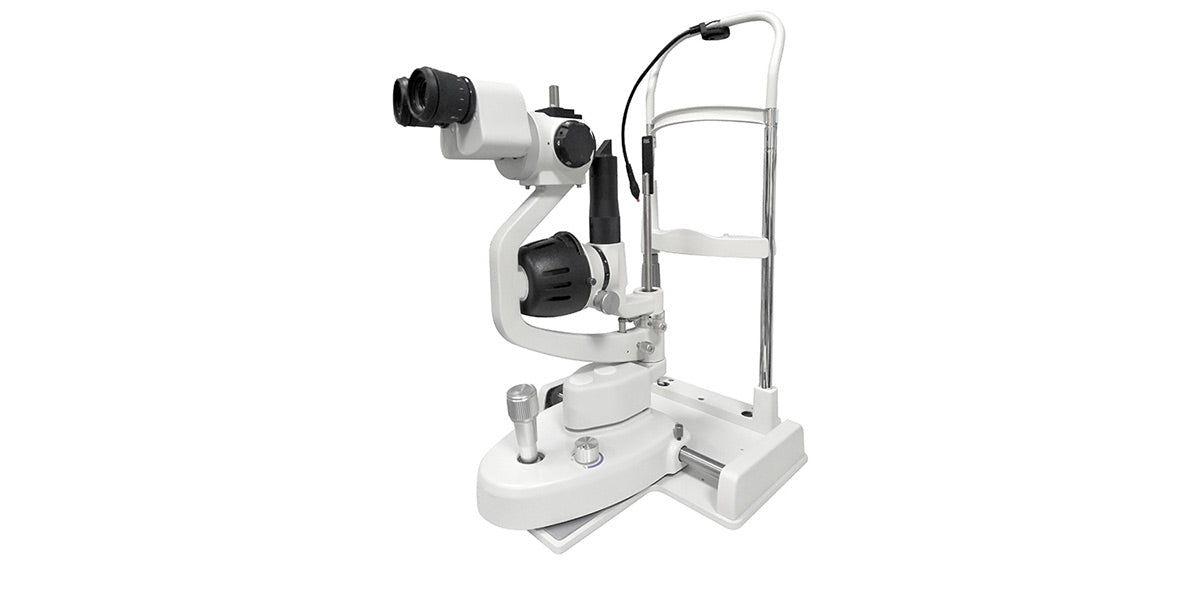

INS-11083 | Slit Lamp Zeiss Style Opti+ 5 Steps Magnifications

Slit Lamp Zeiss Style 5 Steps Magnifications Opti+ model INS-11083

Microscope:

Type: Galilean-Type

Magnification change: Three steps revolving Drum (Standard)

Five steps revolving Drum (Professional)

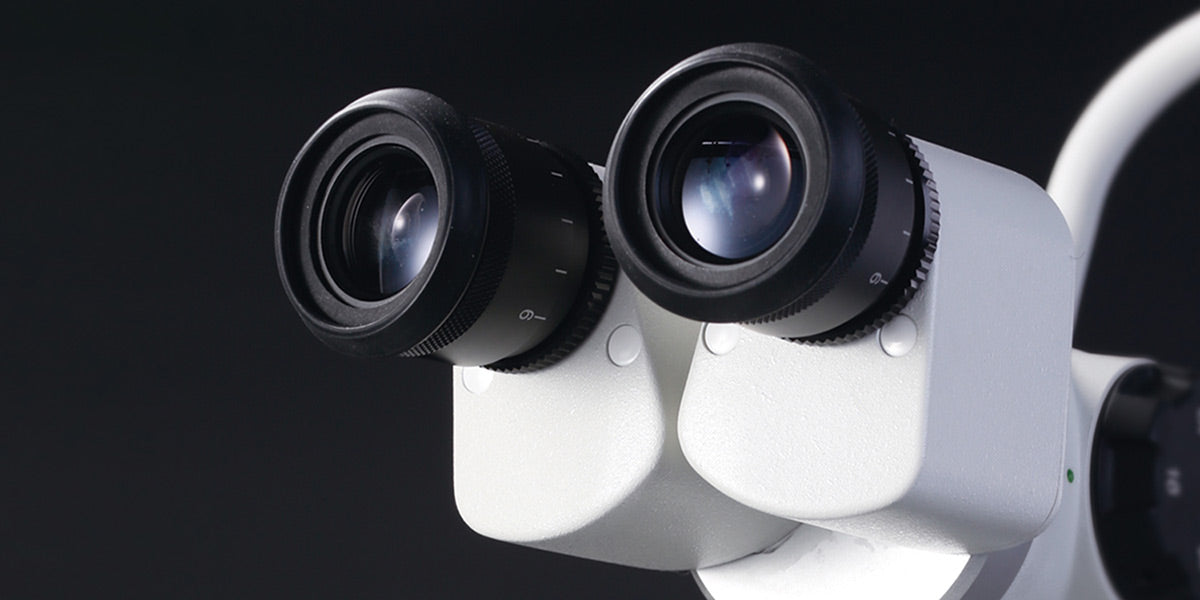

Eyepieces: 12.5X

Angle between eyepieces: 13º

Total magnification

Ratio: 6X, 10X, 16X, 25X, 40X (Professional) 10X, 16X, 25X (Standard)

Pupilary adjustment: 52mm~78mm

Diopter adjustment: 6D

Field of view: 40X (5.5mm), 25X (8.5mm), 16X (13.5mm), 10X (22mm), 6X (34.7mm) (Professional) 25X (8.5mm), 16X (13.5mm), 10X (22mm) (Standard)

Slit width: Continuously variable from 0 to 14mm (at 14mm,slit becomes a circle )

Slit length: Continuously variable from 1mm to 14mm Aperture diameters: 14mm,?8mm,3.5mm,0.2mm

Slit angle: 0-180

Filters: Heat-absorbing filter, Red-free filter ,Cobalt Blue filter

Lamp: 6V/20W

Halogen Lamp

Luminance: 50klx

Base:

Longitudinal movement: 110mm

Lateral movement: 110mm Fine

Base movement: 15mm

Vertical movement: 30mm

Chin-Rest:

Vertical movement: 80mm

LED Power: Input voltage: 220V/110V~10%

Input frequency: 50Hz/60Hz

Power Consumption: 30VA(max)

Dimension: 30 x 18 x 22 in / 77 x 47 x 57 cm

Weight: 52 lb / 24 Kg
