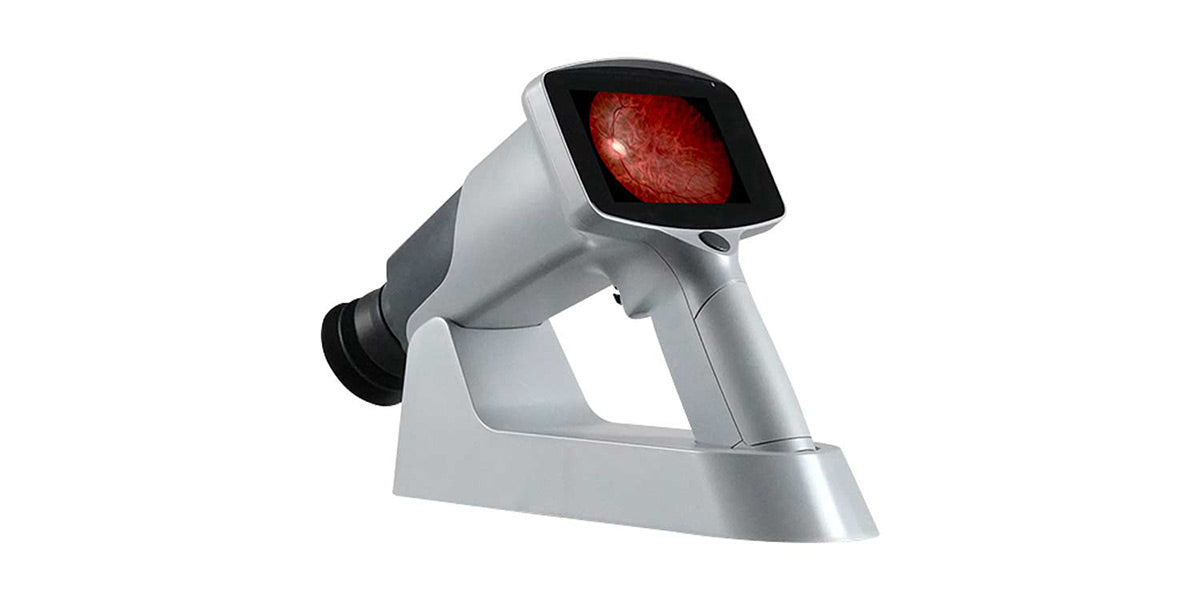

INS-11105 | Hand-held Fundus Camera



Hand-held Fundus Camera Adopts Auto Split Focusing technology, focusing speed reaches milliseconds. It avoids the out-of-focus of the fundus image caused by the patient's movement during shooting,effectively improve the image quality and reduce the requirements for cooperation between operators and patients.

Is an non mydriatic fundus camera which provides high-resolution fundus images, and the image resolution is up to 12 Mega Pixels. Making the diagnosis of early lesions more accurate, It is essential for diagnosing retina disease, such as diabetic retinopathy, glaucoma, and macular degeneration.

The minimum pupil diameter of FC161 is f3.0mm. 20 minutes of mydriatic waiting time is saved, and the risk of mydriasis to the patient is avoided.

With 9 fixation targets, FC161 covers 85° field of view of the fundus and supports the examination of early peripheral lesions of the fundus. With 45 ° field of view , a single central fundus image can be taken to meet the needs of fundus disease screening.

4.3? full-touch LED screen brings a smarter operating experience. Doctors can zoom the image at any time to check the details of the fundus, and can also easily slide the screen to edit and view the case.

Supports real-time synchronization between fundus images and Mediview Patient Management software through WIFI connection.

Type Non-mydriatic

Filed of View 45degrees

Camera Sensor Resolution 12M Pixels

Fixation Targets 9√óLED,Internal

Minimum Pupil Size 3mm

llumination White LED & IR LED

Focusing Manual/Automatic

Focus Range -20D~+20D

Display 4.3”Touch Screen

Image Format JPEG

Type of Image Color

Memory Micro SD card. Maximum 32G

Data Connectivity WIFI/USB

Power Supply Rechargeable battery 3.7V/3400mAh x 2

Working Time 3 hours of continuous work

Charging Station 100-240V~,0.5A,50/60Hz

Power Supply 5V DC,2A

Dimensions 28cm√ó13cm√ó15cm

Weight 800g
