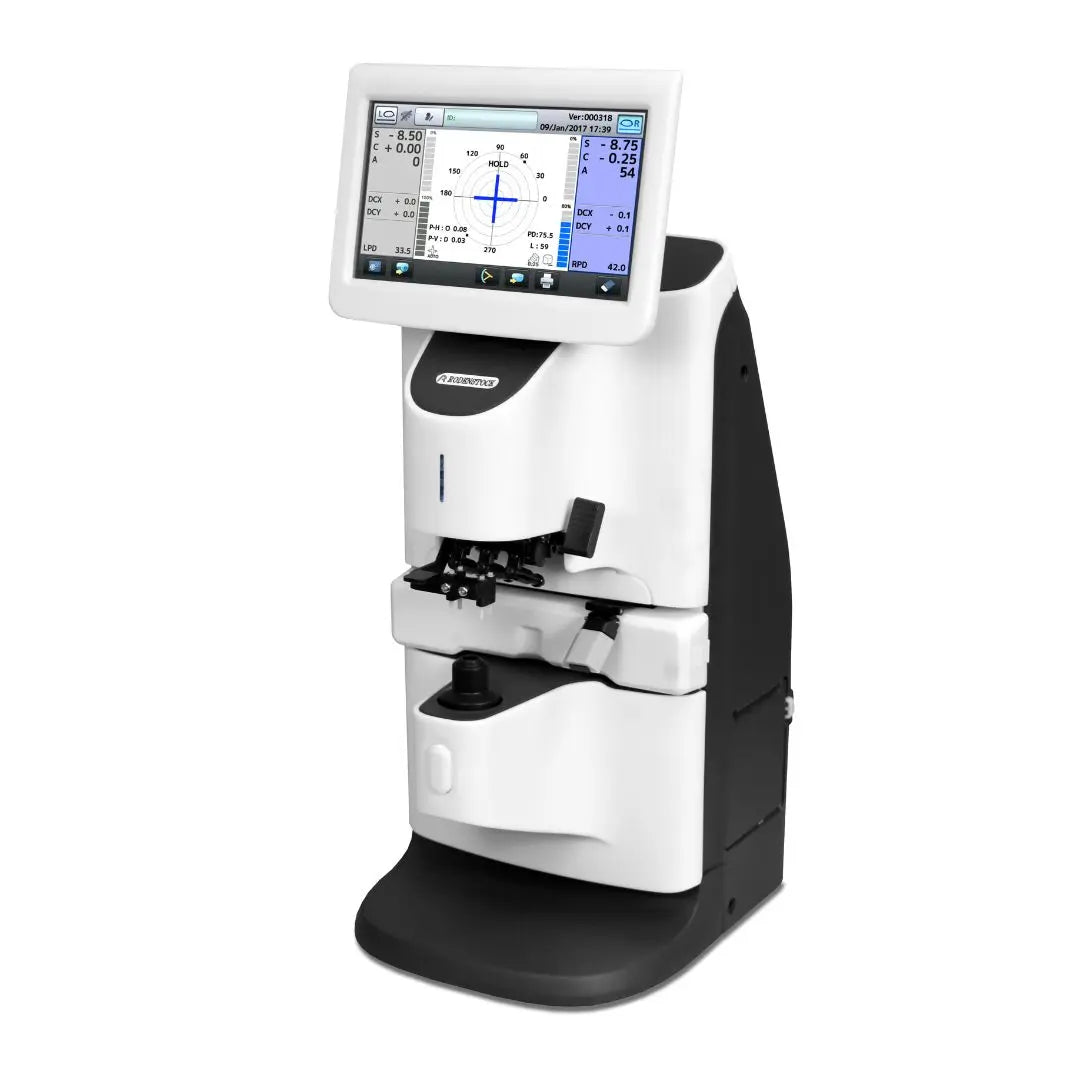

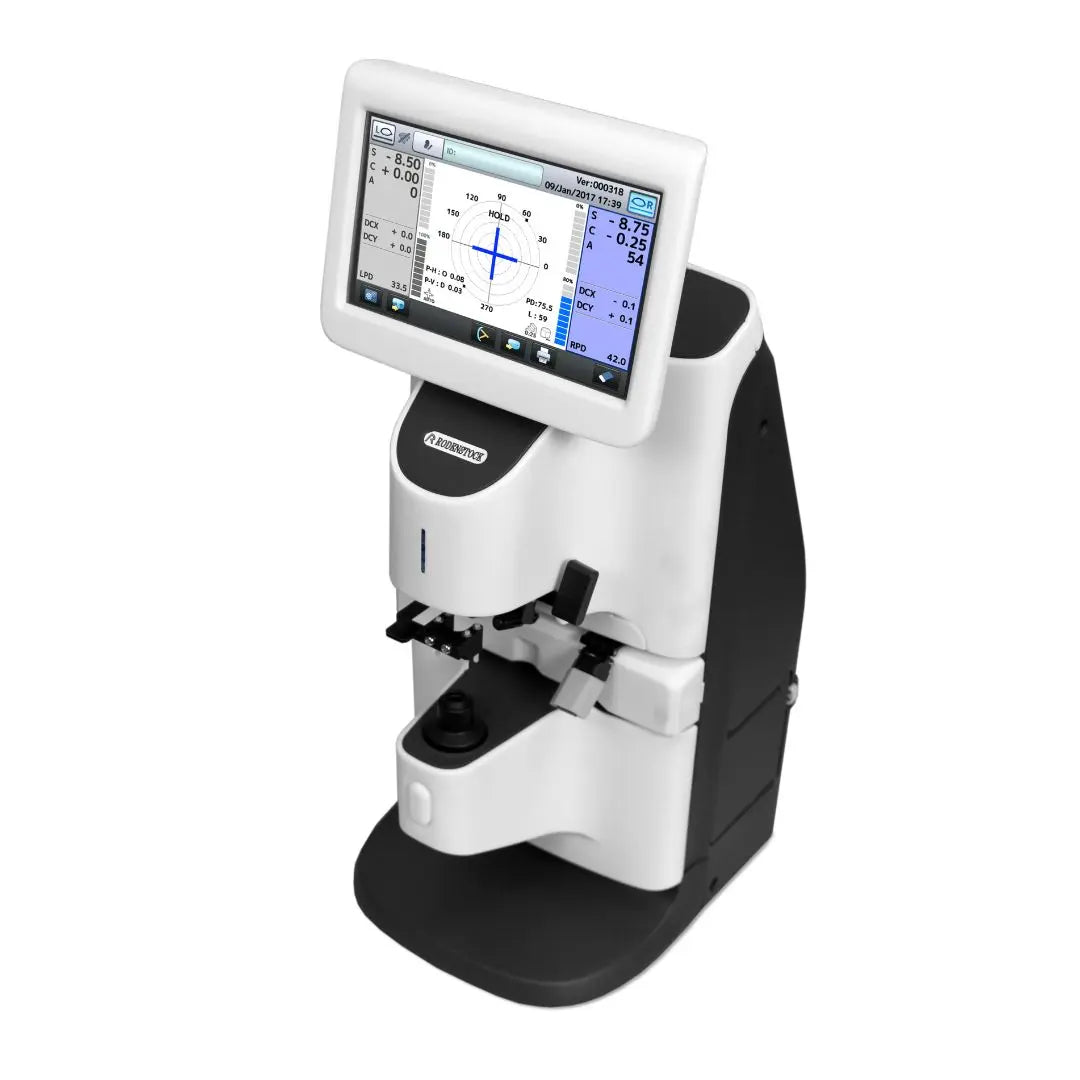

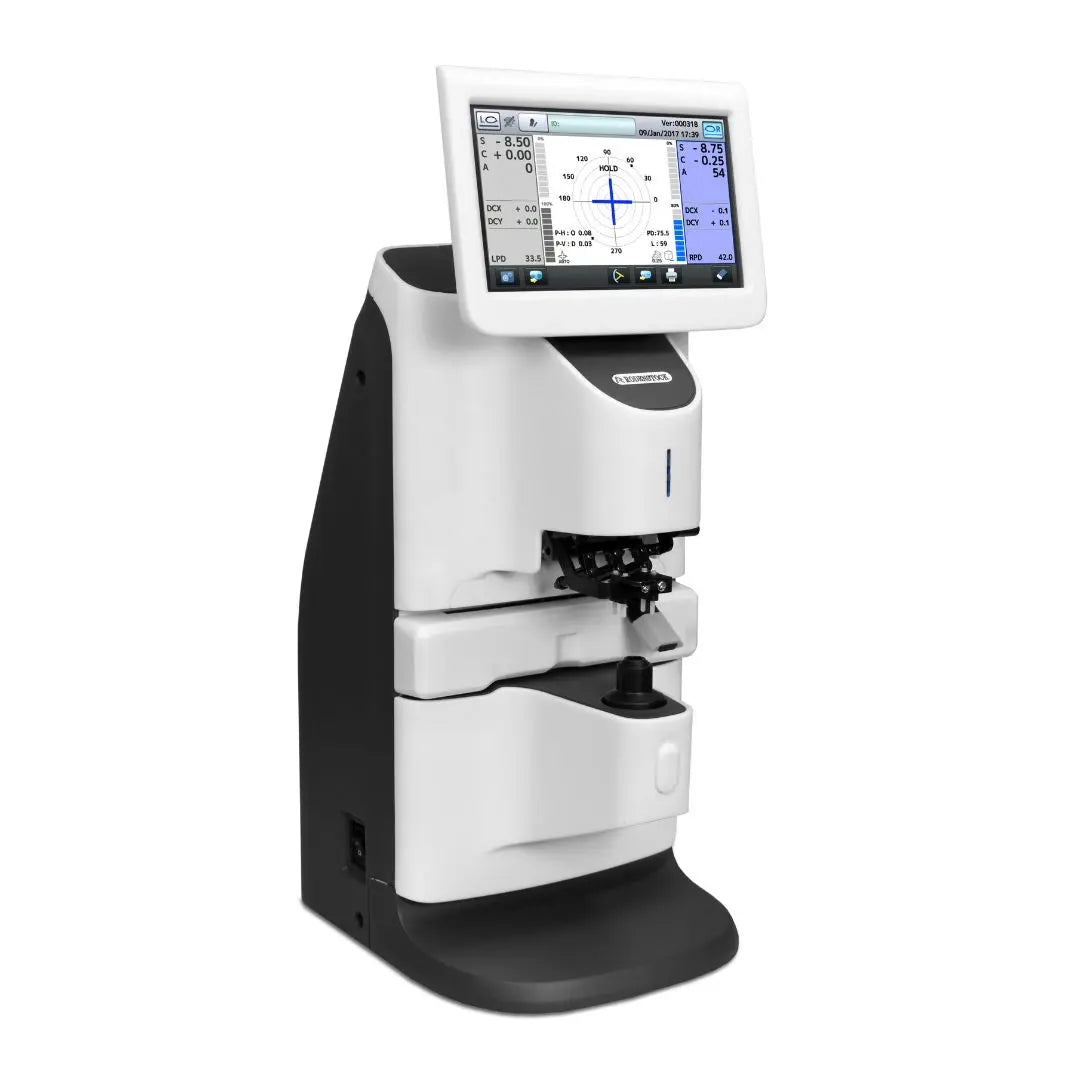

AL 6600 Auto Lensmeter

Rodenstock Lensmeters offer personalized system solutions for all stages of the exam process, from pre-examination to objective and subjective refraction, guided by our team of knowledgeable and experienced professionals.

• Wavefront technology with Hartmann sensor (117 points)
• Simultaneous measurement of UV/Blue light and power
• Lens mark recognition support
• Simple power mapping
• WiFi, LAN and RS-232C connection

WAVEFRONT TECHNOLOGY WITH HARTMANN SENSOR (117 POINTS)
Using 117 point Hartmann sensor wavefront technology in AL 6400/ AL 6600, superior measurement accuracy and speed for all types of lenses is guaranteed. Green LED measurement light allows to measure high index lenses without the
need of Abbe compensation.

SIMULTANEOUS MEASUREMENT OF UV/BLUE LIGHT AND POWER
Blue light filtering lenses have found their way to the optic shops and play an important role to protect the eyes from harmful blue light emission of LED screens.

Show your patients the transmittance
of blue light (465 nm) and of UV light (375 nm) passing through their lenses simultaneously while measuring the optical power.

LENS MARK RECOGNITION SUPPORT
Various grid patterns will assist you to recognize the lens marks easier as well as to visualize the distortion of multifocal lenses.
The grid patterns are changed by swiping the finger over the 7-inch touch panel.

SIMPLE POWER MAPPING
Visualize the progression zone of multifocal lenses with the simple power mapping function. The use of PD-value and the L-value
is recommended and is an exclusive function of AL 6600.

SPECIFICATIONS
MEASUREMENT RANGE
Spherical power (SPH) +/- 25 D
Cylindrical power (CYL) +/- 10 D
Axial angle (AXIS) 0 to 180°
Additional power -2 to 10 D
Prism power 0 to 15
MEASUREMENT INCREMENT
Diopter 0.01 / 0.06 / 0.12 / 0.25 D
Prism 0.01 / 0.06 / 0.12 / 0.25
MEASUREMENT PARAMETERS
Wavelength 535 nm
Diameter of the lens f20 to 120 mm,
more than f5 mm for CL
Pupillary distance 40 to 86 mm, step: 0.5 mm
(for AL 6600 only)
Measurement object Spectacle lens, contact lens,
optical lens
Transmittance of UV The peak of the wavelength
is 375 nm
Transmittance of blue light The peak of the wavelength
is 465 nm
Display 7-inch-wide colour TFT
with touch panel
Printer Thermal printer,
paper width 58 mm
External communication
port RS-232C, USB3.0, Ethernet
DIMENSONS & ELECTRIC REQUIREMENTS
Dimensions WDH 188 x 240 x 430 mm
(when LCD is tilted)
Weight Approx. 5.5 kg
Voltage AC 100 V-240 V
Frequency 50/60 Hz
Power consumption 40-50 VA
